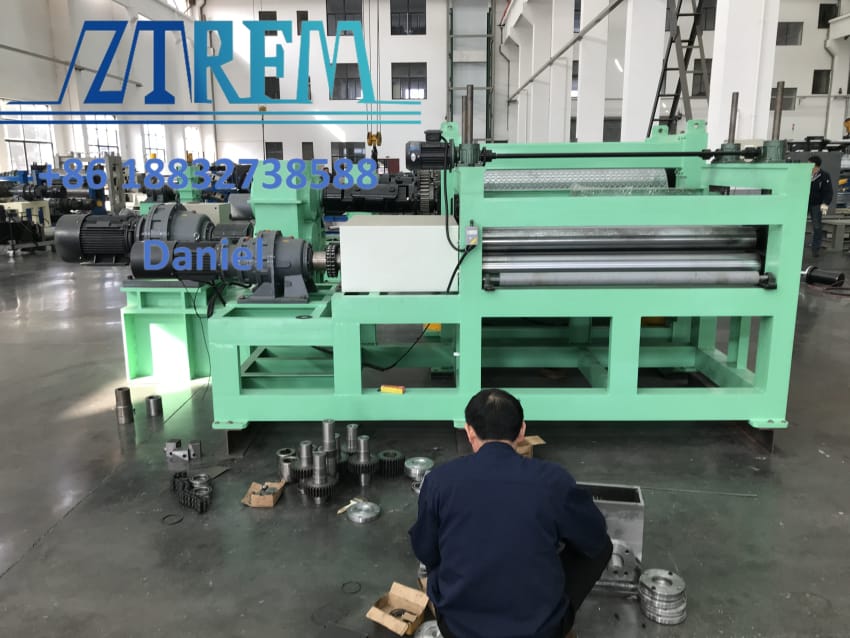

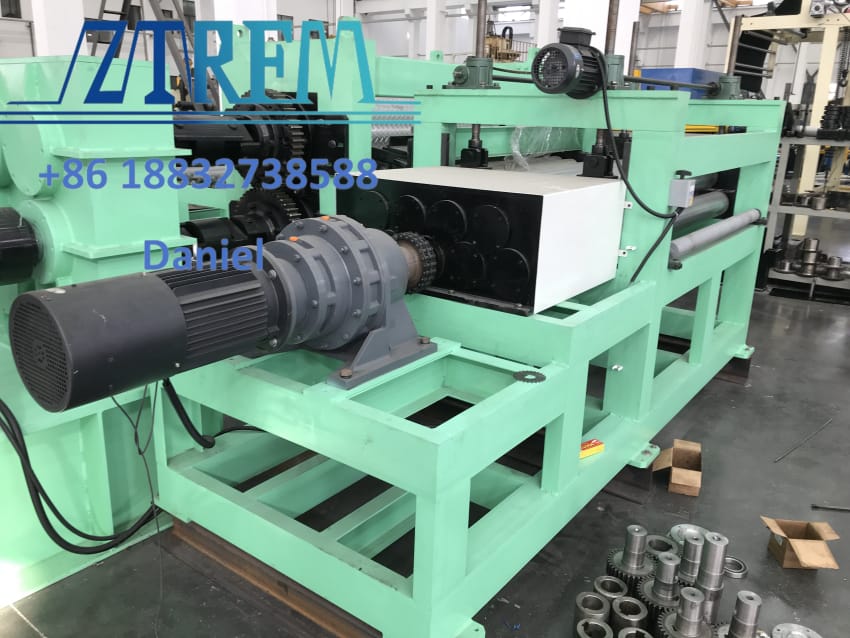

ZTRFM Automatic Metal Embossing Machine

ZTRFM Automatic Metal embossing machine shapes various patterns on the metal surface through mechanical pressure and is widely used in the construction, home furnishing, automotive and other industries. In the field of metal processing, embossing is like a delicate art, transforming cold metal sheets into decorative materials full of texture. This article will delve into the technical principles, structural features and application scenarios of automatic metal embossing machine, revealing how they have become indispensable "texture sculptors" in modern industry.

AutomaticEmbossing machine details parameter:

1.Technical Principle: The perfect collaboration between pressure and mold

The core working principle of the automatic metal embossing machine is based on the "pressure forming" technology. After the metal sheet is fed into automatic metal embossing machine, the upper and lower molds close under the action of the hydraulic or mechanical transmission system, applying pressure of up to several hundred tons to the metal. This pressure causes the metal to undergo plastic deformation, eventually forming a concave-convex texture on the surface that is exactly the same as the mold pattern. The entire process can be subdivided into three key steps:

Positioning stage ‌ : Through photoelectric sensors or mechanical positioning devices, ensure that the metal sheet is precisely aligned with the mold, with an error controlled within 0.1 millimeters.

Pressurization stage ‌ : The hydraulic system advances at a speed of 5-10 millimeters per second, and the pressure is automatically adjusted according to the material thickness to prevent excessive deformation.

Pressure holding stage ‌ : The pressure is maintained for 3 to 5 seconds to stabilize the metal molecular structure and ensure that the pattern does not fade for a long time.

2. Structural Features: Modular design enhances flexibility

Modern automatic metal embossing machine adopt a modular design, allowing for quick mold replacement or parameter adjustment as required. The main structures include:

The body frame ‌ :Metal embossing machine main body frame is formed by integral welding or casting and undergoes aging treatment to eliminate internal stress, ensuring no deformation during long-term use.

Hydraulic system ‌ : composed of motor, oil pump, valve group and cylinder, the pressure range covers 50 to 500 tons, and the pressure curve can be monitored in real time through the touch screen.

Mold system ‌ : The upper and lower molds are made of hard alloy or tool steel, and their surfaces are treated with nitriding, with a hardness of over HRC60, capable of withstanding high-frequency impacts.

Control system ‌ : Integrated PLC and HMI interface, supporting parameter storage, fault diagnosis and remote monitoring. The operator only needs to input the thickness of the sheet and the pattern type, and metal embossing machine can automatically complete the embossing.

To enhance safety, metal embossing machine is also equipped with a grating protection device and an emergency stop button. When an abnormality is detected, the power source can be cut off within 0.5 seconds.

3. Application Scenarios: From architectural decoration to automotive interiors

The application fields of automatic metal embossing machine are extremely extensive. The following are typical scenarios:

The construction industry ‌ : it is used to produce decorative materials such as aluminum single plates and stainless steel curtain walls. Through the embossing process, it can imitate natural textures such as wood grain and stone grain, enhancing the aesthetic value of buildings.

Household items ‌ : manufacturing components of home appliances such as refrigerator panels and washing machine shells. Embossed patterns not only enhance visual appeal but also cover up surface scratches.

Automobile industry ‌ : Pressing brand logos or decorative lines on door interior panels, center consoles and other parts to enhance the luxury feel of the interior.

Packaging industry ‌ : produces packaging containers such as metal cans and gift boxes. Embossed patterns can enhance product recognition and improve structural strength at the same time.

4.Future Trends: Parallel development of intelligence and environmental protection

With the advancement of Industry 4.0, metal embossing machines are developing in the following directions:

Intelligent upgrade ‌ : Achieve device interconnection through Internet of Things (iot) technology, upload production data to the cloud in real time, and support predictive maintenance and process optimization.

Environmental protection design ‌ : Utilizing biodegradable hydraulic oil and low-noise motors, it reduces carbon emissions and noise pollution during the production process.

Material innovation ‌ : Adapt to the embossing requirements of new materials such as magnesium alloys and composite materials, and expand the application boundaries of metal embossing machine.

5.Conclusion

As the "texture enver" in the field of metal processing, the metal embossing machine has endowed metal materials with new vitality by combining mechanical pressure with mold art. From building curtain walls to automotive interiors, from home appliance panels to packaging containers, its application scenarios are constantly expanding, making it an indispensable process metal embossing machine in modern industry. With the continuous advancement of technology, metal embossing machine will continue to lead the innovation of metal surface treatment processes, injecting more possibilities into product design.
