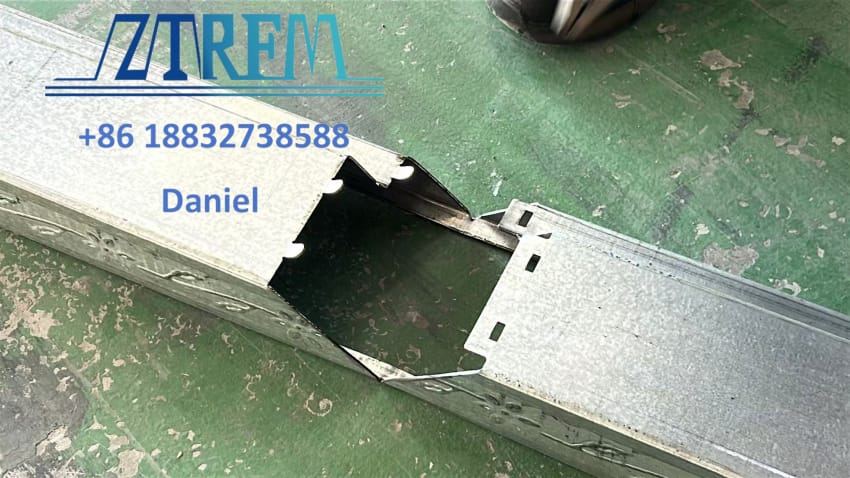

ZTRFM Metal door frame roll forming machine produce metal door frame products through a production line equipped with leveling, punching, embossing, cutting and forming machines. It has solved the complex and cumbersome processing procedures of traditional door frames, such as cutting materials, drilling installation holes, spraying glue, and interlocking and bonding. The one-piece molding ensures production efficiency and product qualification rate, and can better meet customers' customized demands for patterns and punching
ZTRFM Metal door frame roll forming machine Raw materials coil details:
Materials types: aluminum, stainless steel
Material thickness: 1-2mm
Maximum material width: 496mm
Machine production flow chart
Uncoiler - into the material - leveling - bending hole - impact and lock - cut - electric transmission platform - the main molding equipment - rack
Machine advantages
1. High degree of full automation，A production line includes punching, embossing, and one-piece forming to produce finished products.
2. The embossed pattern and the punching spacing can be customized and adjusted at will. It is highly practical and has a wide range of applications
3.Metal door frame machine angel degree keep accuracy and frame width can adjustable.
Door frame machine Decoiler

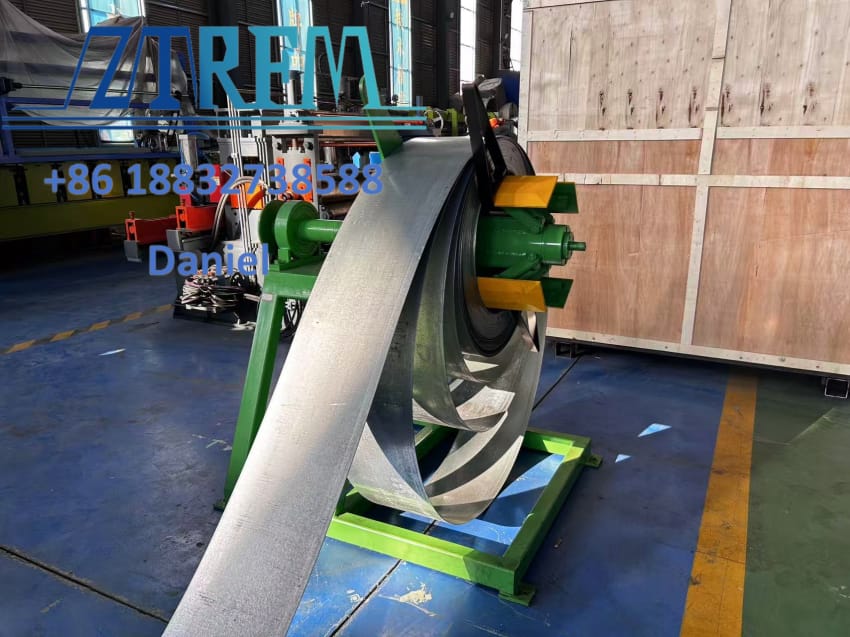

Our ZTRFM Metal door frame roll forming machine offer two types of decoiler machines: manual decoiler machines and hydraulic decoiler machines
1.Manual decoiler is suitable for manual uncoiling and passive uncoiling (uncoiling the steel coil by pulling it through the main forming machine). The maximum width of the uncoiling reel can reach 650mm. Our manual uncoiling machine is equipped with a brake to prevent material scratches in case of emergencies and to better ensure the safety of workers.
2. Hydraulic decoiler: Our hydraulic decoiler is equipped with a pneumatic pressure arm (used to press the steel coil tightly to prevent the tension of the steel coil from injuring workers) and a sensing device (sensing the feeding situation of the steel coil and stopping work in time in case of emergency). If the customer does not have a forklift or a crane, we can also install a loading trolley for you.
ZTRFM Metal door frame main roll forming machine

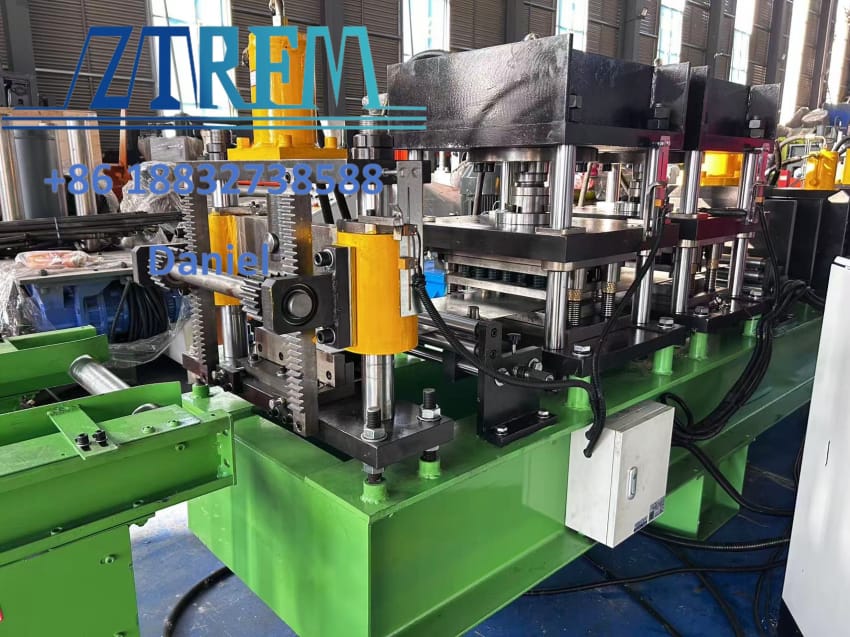

The main body of the metal door frame machine is divided into two parts: the punching and embossing part and the main forming part
1. Punched and embossed part

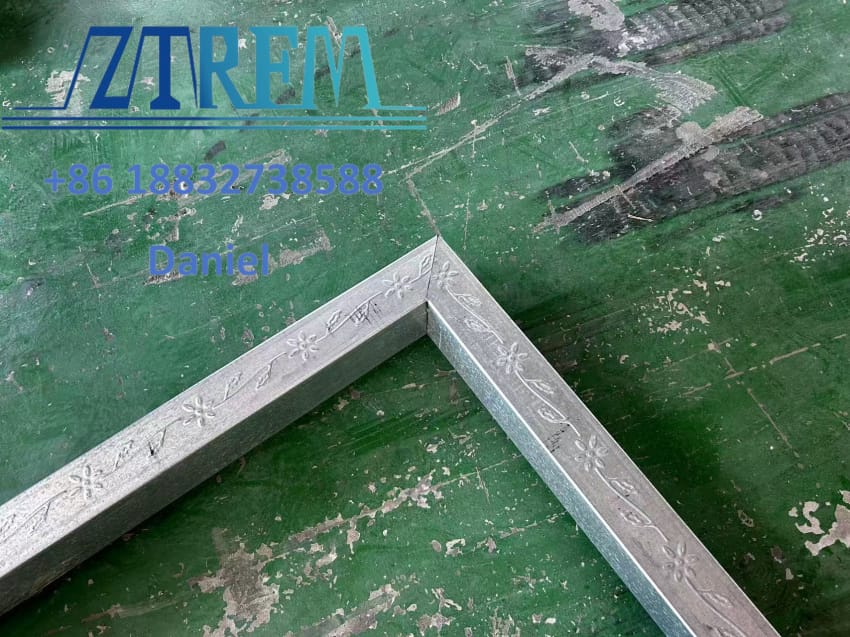

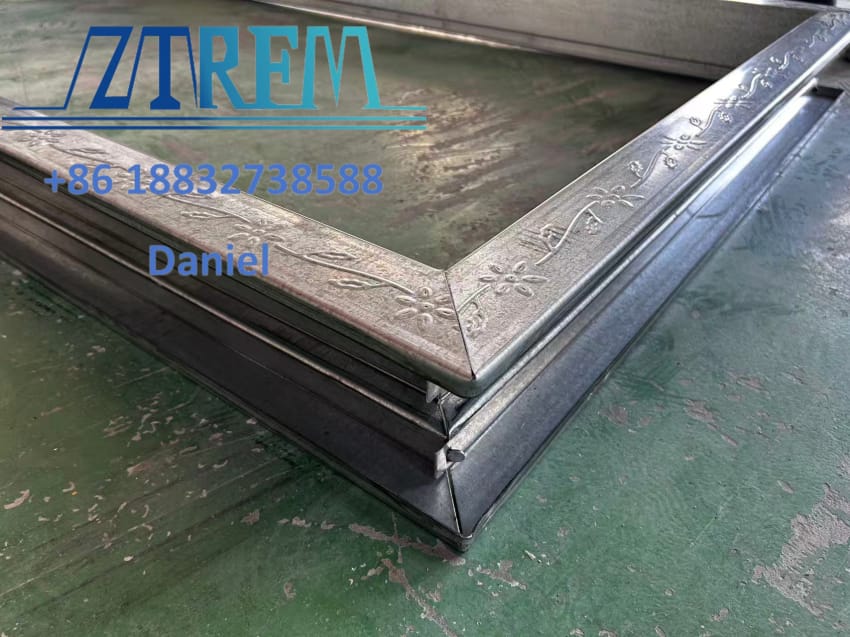

A. Embossing device: The embossing patterns on the door frame surface can be customized, and the embossing depth can also be customized. We will have our engineer team reasonably design the embossing mold based on the thickness of the customer's raw materials to ensure one-piece molding.

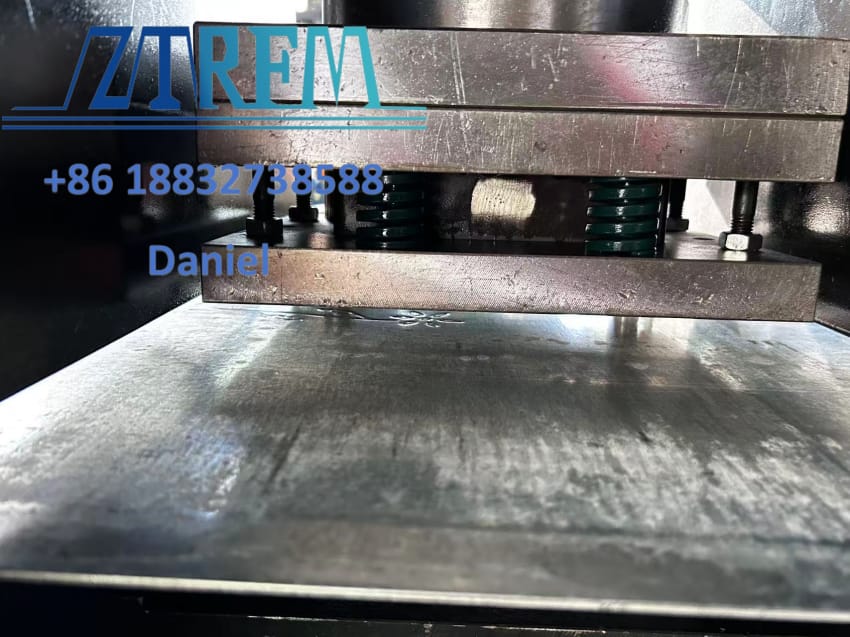

B. Punching device: Mainly for punching, bending holes, locking holes and installation holes. The punching dimensions and positions can be directly input and set on the PCL control console.
Features
The punching unit is driven by a servo motor, with a positioning accuracy of ±0.1mm
The embossing module supports 3D relief effects, with a depth adjustment range of 0.2-1.5mm
The main forming machine is equipped with multiple sets of adjustable rollers, with the Angle tolerance controlled within ±0.5°
The embossing die is made of Cr12MoV alloy steel and quenched, with a hardness of HRC58-62 and a service life of over 500,000 times
The punching die set is equipped with a quick die changing device, reducing the die changing time to within 15 minutes
Integrated waste collection system to achieve automatic recycling of scraps
2. Main roll forming machine
The 40Cr alloy steel rollers (with an axle diameter of 80mm) are adopted. The forming Angle is fed back in real time through a digital encoder, and a hydraulic compensation device is used to ensure the bending accuracy. The minimum width of the small edge forming can be as small as 15mm, meeting the processing requirements of ultra-narrow frames.
Electronic control system

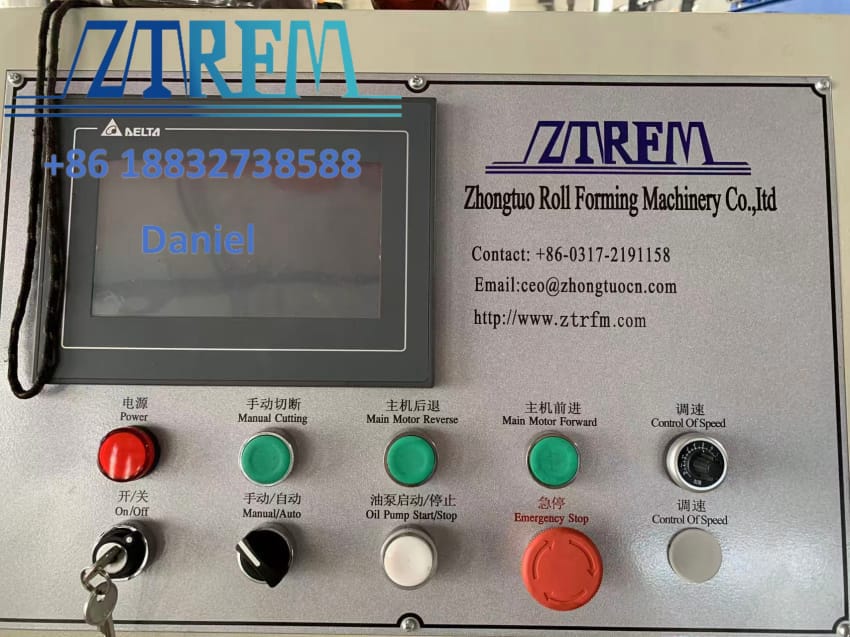

We use imported Delta brand electrical control, Schneider frequency converters, and Omron counters imported from Japan. The wiring of the machine's electrical box is connected with aviation plugs (which are tightly plugged in to prevent the wiring from getting damp during sea transportation). We will provide wiring diagrams in corresponding languages for the door panels of the electrical cabinet to facilitate customers' wiring and use.

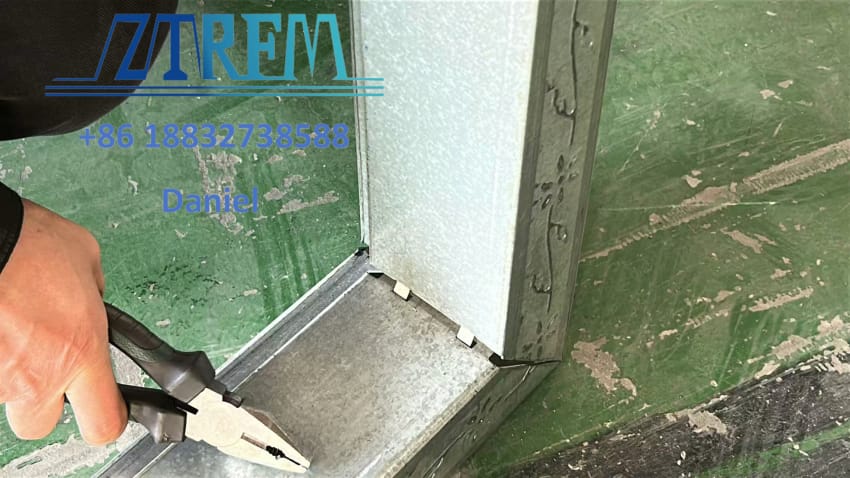

Below, we will show you the assembly of our finished metal door frames that can be completed in just one minute
