Wall Cladding Metal Roll Forming Machine: A Comprehensive Overview
Introduction to the wall cladding metal roll forming machine
ZTRFM wall cladding metal roll forming machine is a highly specialized and technologically advanced building machine to produce wall cladding panel in large quantities, entirely through an automated process.In the field of architecture, metal roofs and wall panels are the main parts of architectural decoration. Nowadays, the diversification of building materials, such as color-coated steel sheets, galvanized steel sheets, engraved aluminum sheets, laminated panels, etc., can meet people's pursuit of architectural styles and types

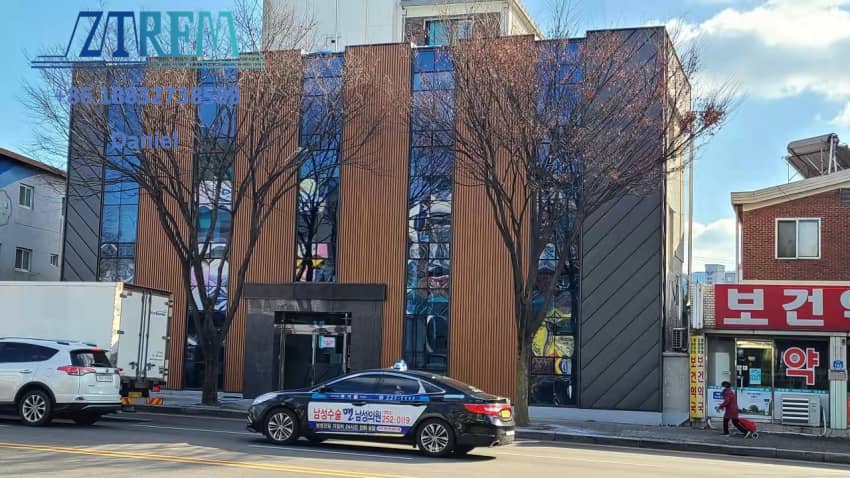

Wall cladding panel become more and more popular in building decoration area, For example, the exterior walls of buildings and restaurant walls in Itaewon, South Korea, and now in China, Saudi Arabia, and European countries, cladding panels are being used to decorate traditional cement walls. The wall clading panel is used in many regions also because of the local climatic conditions and air humidity. For instance, in some regions with high humidity or extreme temperatures, the choice of sheet materials is those with specific resistance properties. Moreover, the wall surface with the wall cladding sheet installed will have better wind resistance and resistance to rainwater erosion corrosion In this context, we are excited to introduce a new and innovative design for wall cladding metal roll forming machine .
Advantages of Zhongtuo Wall Cladding Profiles
1. Easy Installation and Proper Joint Connections
Zhongtuo wall cladding profiles is easy installation.Our design carefully crafted to ensure that the installation process is straightforward and efficient. The connecting components are precisely designed to fit together correctly, eliminating gaps or misalignments in different panels. Wall cladding sheet saves installation time and ensures durability and safety. The wall cladding sheets can withstand various environmental factors, such as wind, rain and temperature changes, without affecting their integrity.
2. Integrated and Versatile Wall Panel System
Our wall cladding sheets is an integrated solution that combines a concealed fastener, rain screen, and wall panel system. This versatility means same system can be used in different types of buildings, from residential homes to commercial complexes, without sacrificing functionality or style.
3. Exposed Fastener Walls: A Wide Range of Options

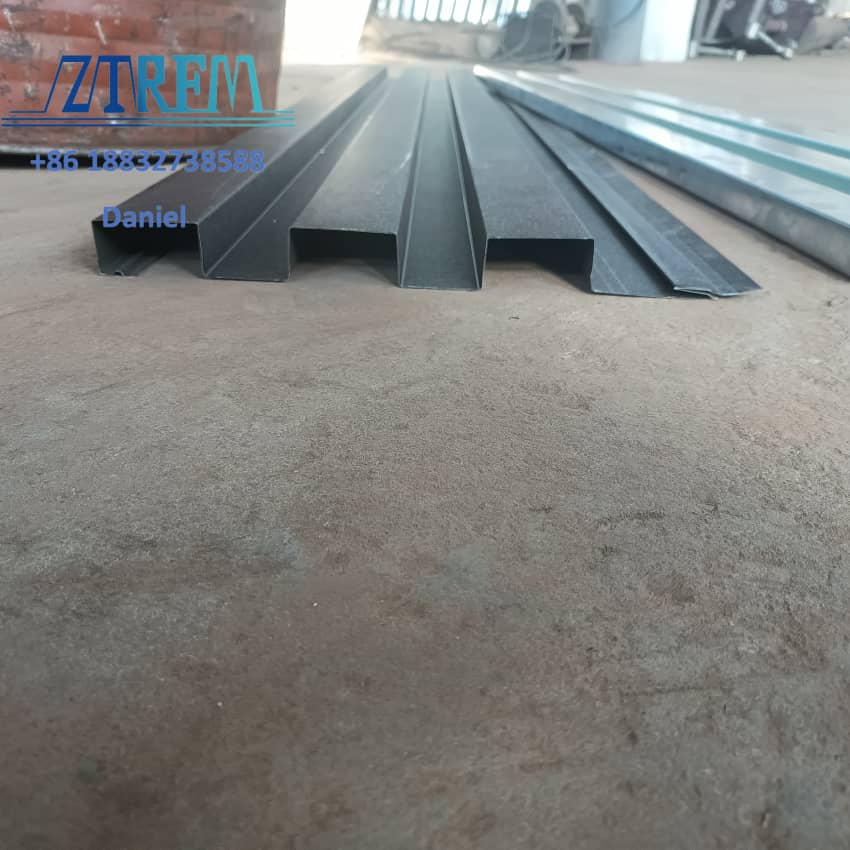

Exposed fastener walls have become increasingly popular in modern construction, being used in almost every type of building today. For a specific wall project, we recommend specifying the "B" profile exposed fastener. This profile features a finished side and a low cell lap, which not only enhances the visual appeal but also provides better protection against the elements.

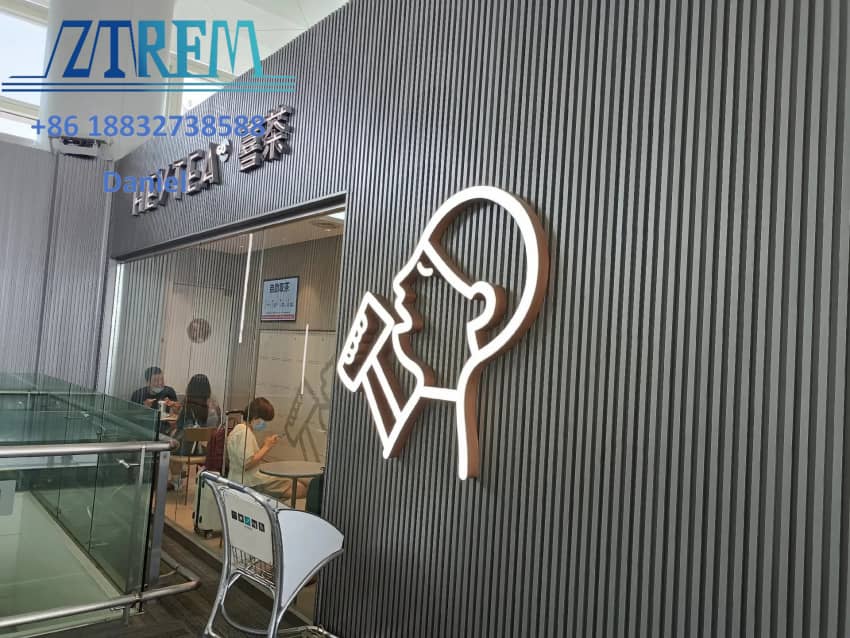

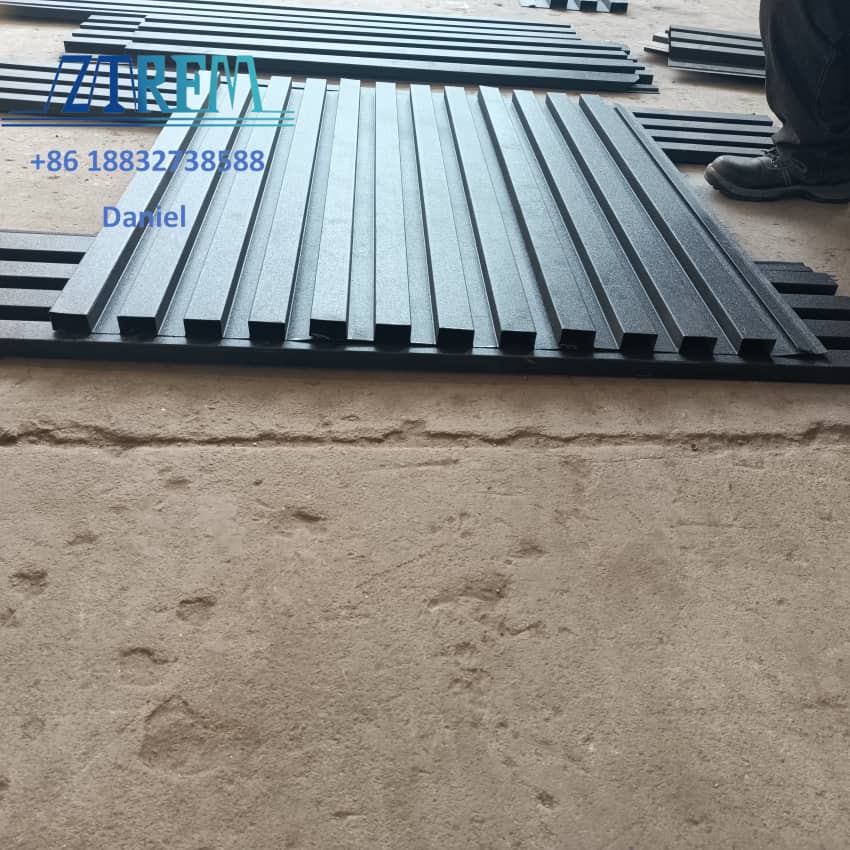

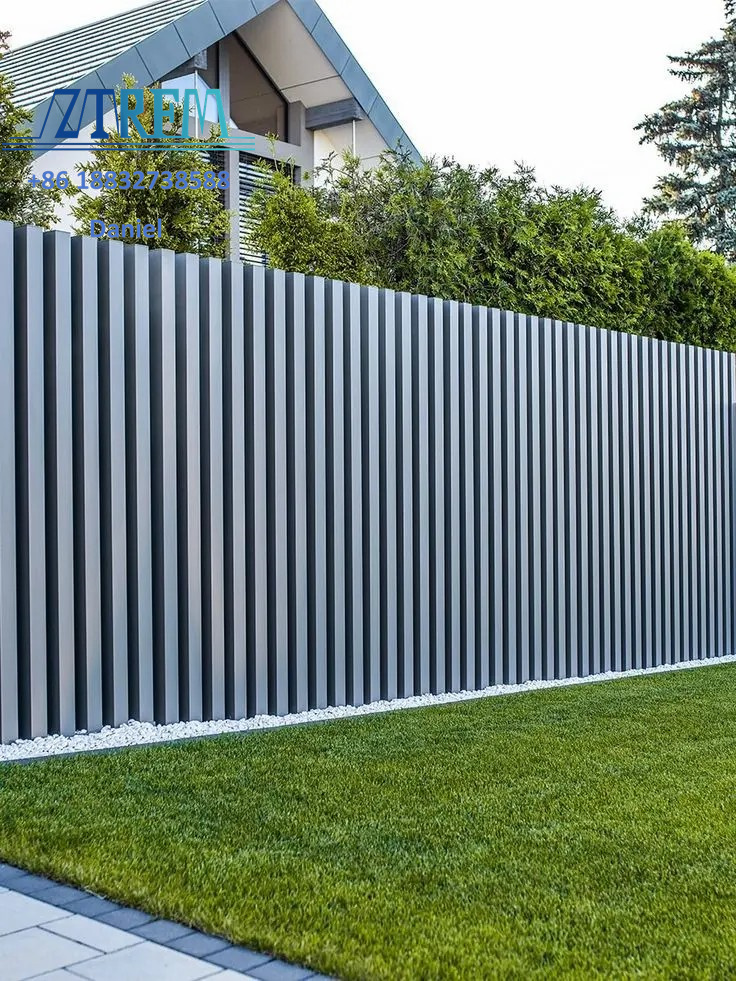

Installation Pictures for Reference
For our machine services, we offer professional machine user manuals, including paper instructions, picture tutorial instructions, and video demonstrations. It can ensure that customers can learn and understand the use of the machine more directly, as well as the lapping and installation of the plates
Machine Parameters for Your Reference
Material Specifications
Wall cladding metal roll forming machine is capable of processing a wide range of materials, including hot-rolled (HR), cold-rolled (CR), galvanized/zinc-coated (G/Z), and pre-painted steel coils. The multi-functionality of the Wall cladding panel make machine ensures that customers can select the most suitable materials according to specific project requirements and buildings in different regions. Our wall cladding sheet-making machine supports common color-coated steel plates. The thickness range of galvanized steel plates is 0.5 to 0.7 millimeters. Additional customization is required for aluminum plates and stainless steel.
The standard input coil width is 607 mm, ensuring broad compatibility with commonly available raw materials and facilitating efficient procurement from various suppliers.

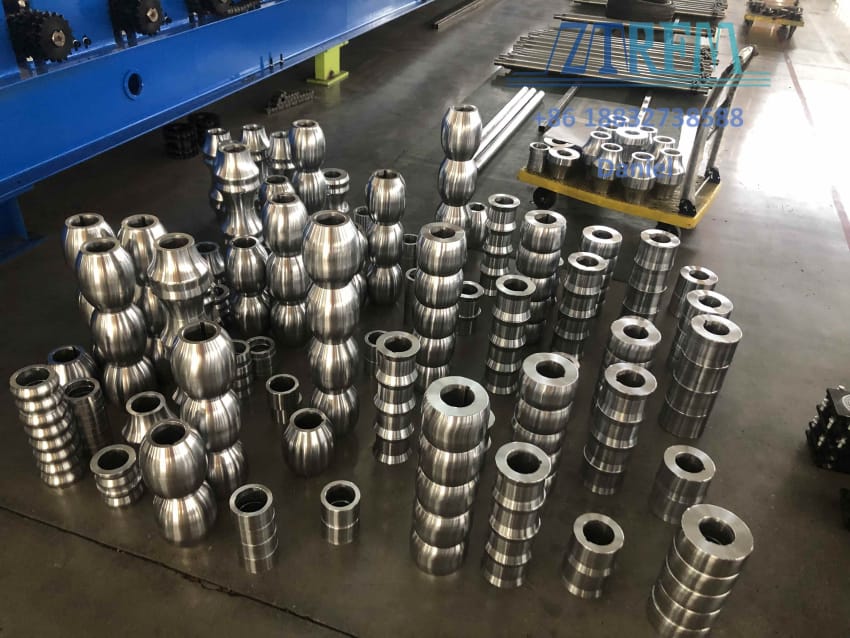

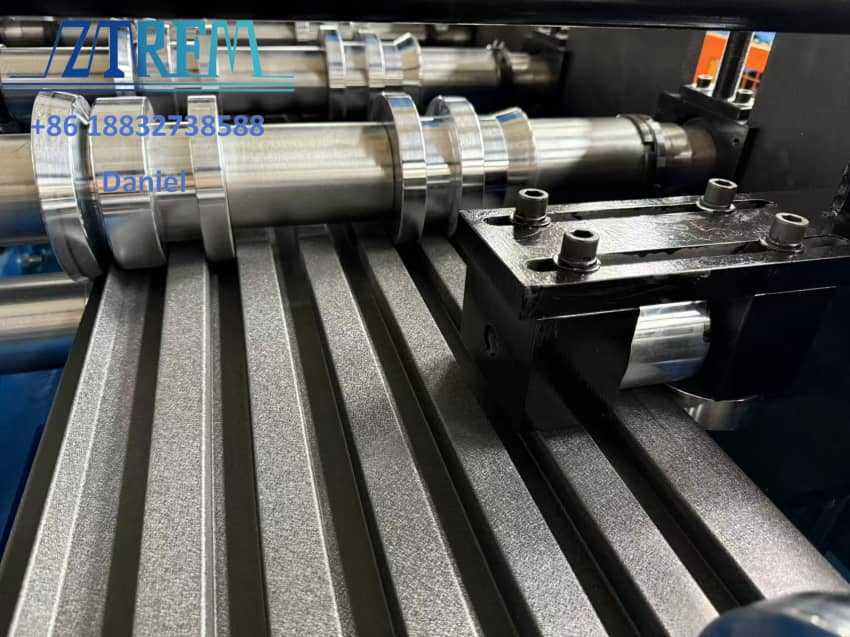

Roller details: ZTRFM wall cladding metal roll forming machine has 28 rows rollers, the roller material is 45#steel and chrome-plated. The includ feeding and forming machine can work at a speed of up to 20 meters per minute. An automatic oiler is installed during the forming process to protect the paint and zinc layers on the material surface. The production speed of the machine can meet the requirements of batch production, and the Angle accuracy of the sheet can be precisely completed
Roller shaft details: The material is 45# steel, which has undergone high-temperature quenching treatment. The shaft diameter is 80mm, and the middle plate thickness is 20mm. It has excellent wear resistance and corrosion resistance. Moreover, the assembly of our shafts and rollers is fixed by keys and keyways through insertion, ensuring stable molding and guaranteeing high strength and resistance to deformation under operating loads.
Transmission details: The machine adopts a 1-inch double-chain drive, which is renowned for its reliability and stable power transmission. The machine is driven by a 7.5kW motor to provide sufficient power. The chain is equipped with a tensioning device to ensure its service life
Shearing details: A hydraulic shearing system is used, and an automatic oiler is added at the cutting blade to ensure a smooth cut surface without deformation or burrs. The cutting length tolerance is maintained at a high dimensional accuracy of ±1mm. The material of the shearing blade is Cr12 tool steel, which features high hardness and good wear resistance, reducing maintenance frequency and extending service life.
Key Advantages of the Zhongtuo Wall Cladding Metal Roll Forming Machine:
1. The high efficiency and stability of the machine

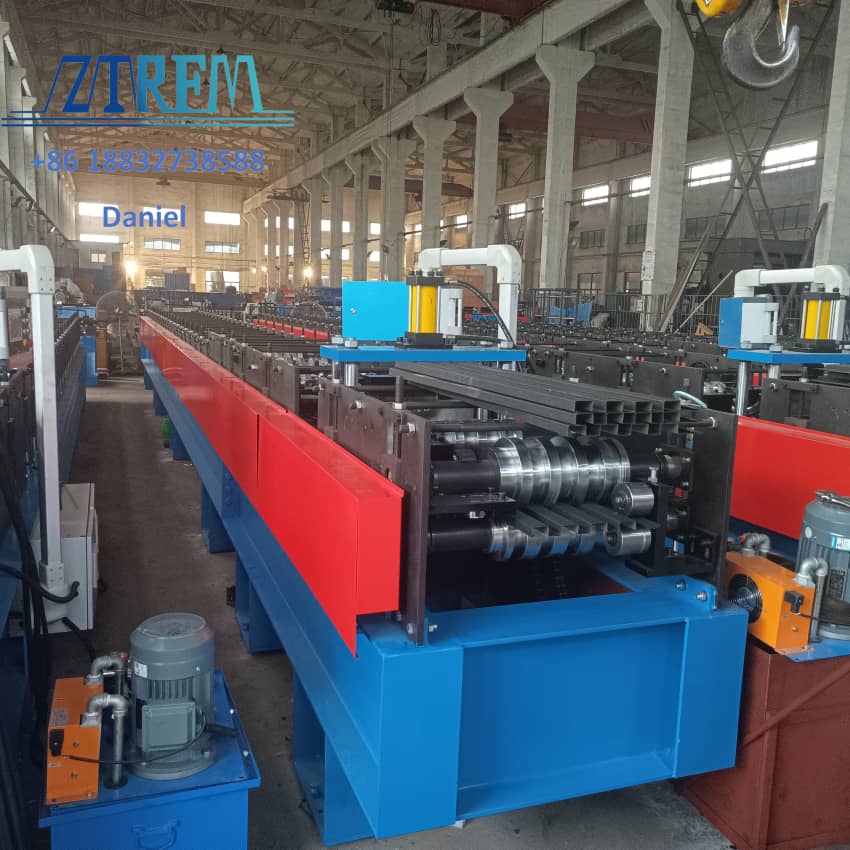

Our wall cladding metal roll forming machine consists of 28row rolls and adopts split forming. Different ribs are formed one by one to improve the forming accuracy and ensure the Angle and production speed. Because for the wall panels, we have achieved a smooth surface without any waves or scratches!
2. Double cut configuration
The wall panel making machine can be designed with two shearing devices, the front shearing and the rear shearing. The front shearing is conducive to accurate material preparation before molding, ensuring the precise length of the finished product, while the rear shearing guarantees precise and final perfect cutting without deformation. This design enables customers to control and select the cutting device according to their own requirements, making it more intelligent and convenient
3. Imported Delta programmable Logic Controller (PLC)
Equipped with an imported Delta adjustable PLC control system, it enables technicians to easily configure key parameters. The forming speed, cutting length and the precision of the plate shape can be adjusted through the PLC. The imported Delta electronic control system is a globally renowned brand and is also very helpful for the after-sales service and debugging of customers in the later stage! The wiring plugs of the machine's electrical control cabinet adopt first-grade aviation plugs, which are tighter and safer!
4.Reliable after-sales service
Our Zhongtuo Factory Wall cladding sheet making machine has 7*24h online technique service ,and we has professional oversea engineer team , can go customer’s factory to help customers debug machine and teach workers, worth your long time cooperate!
