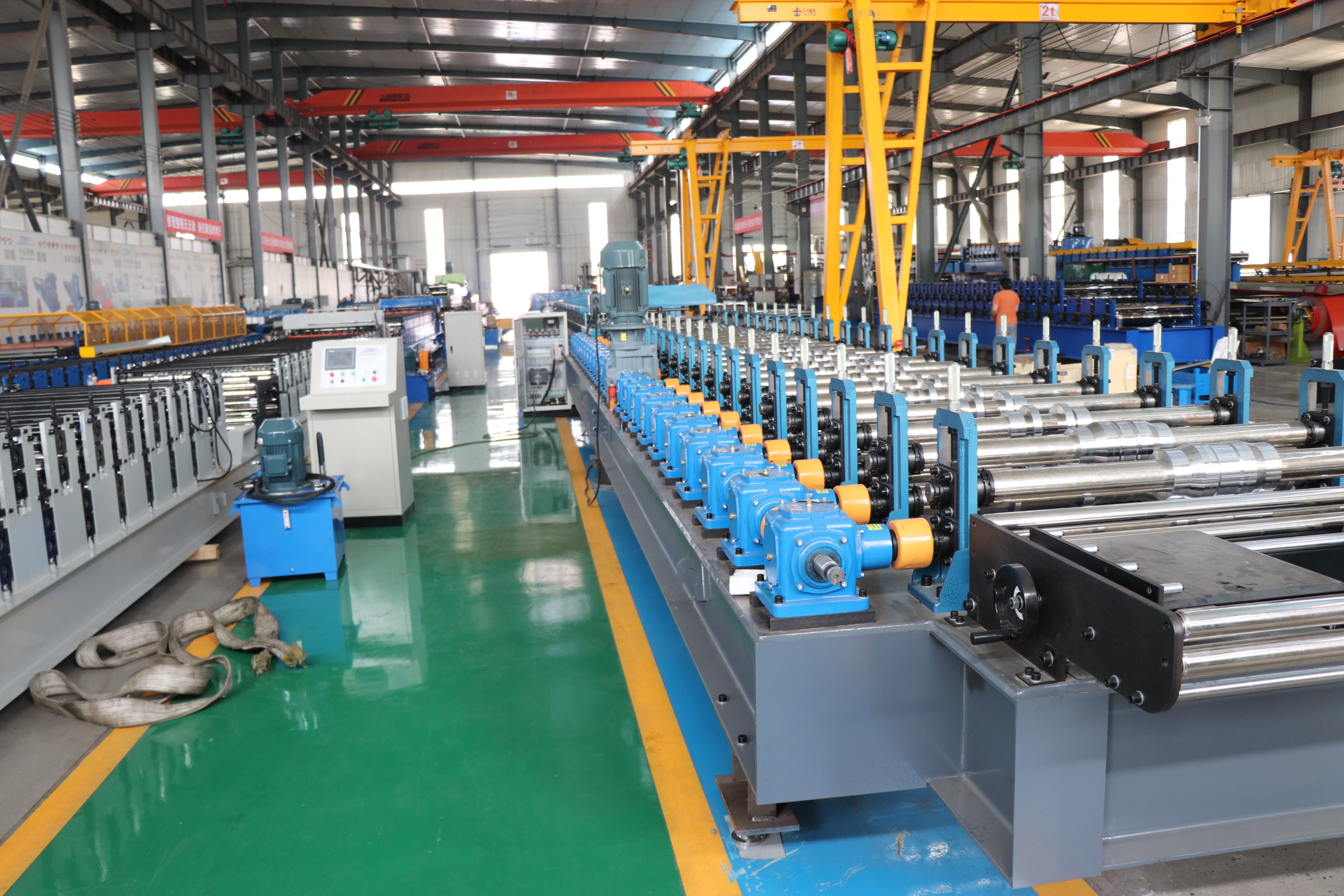

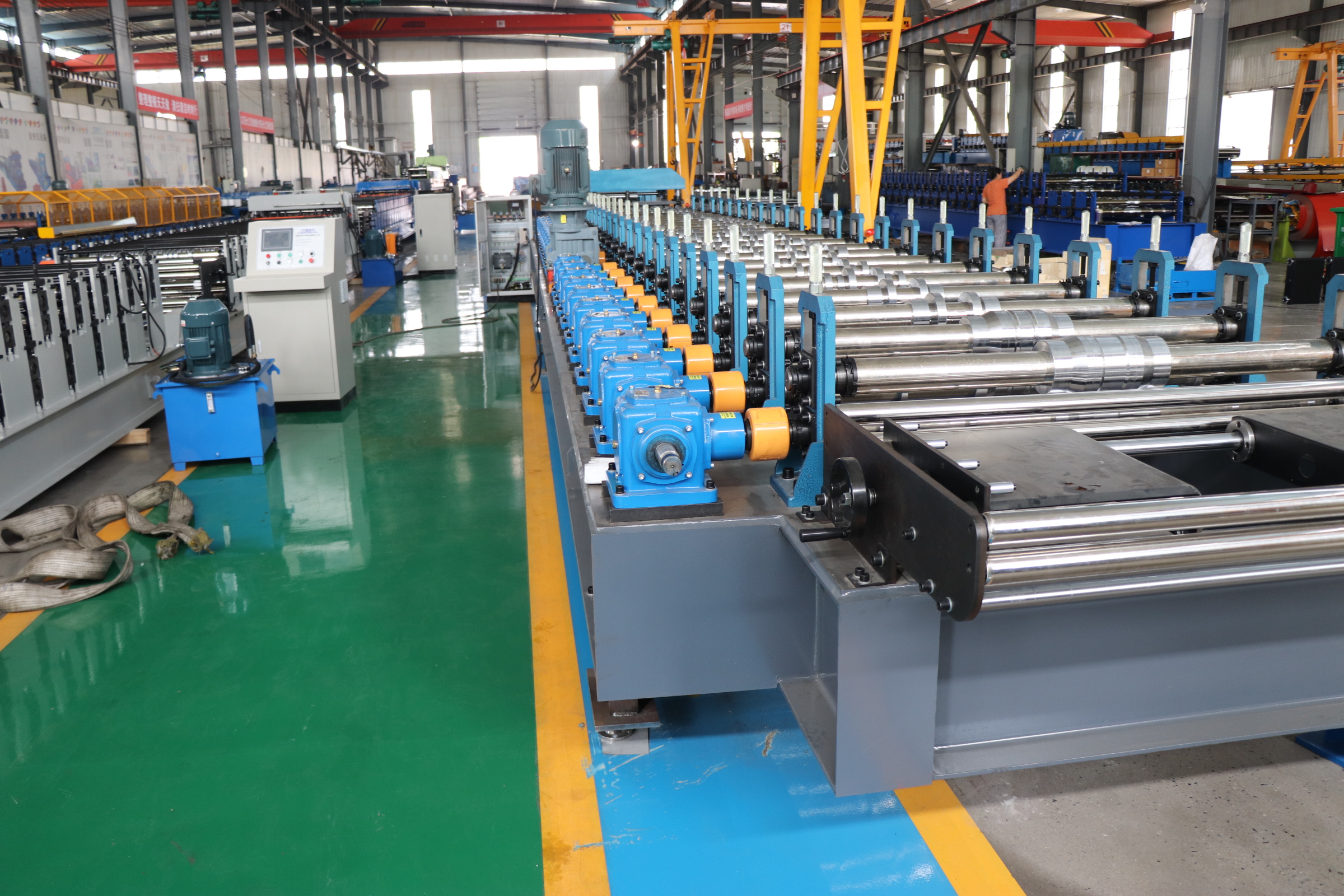

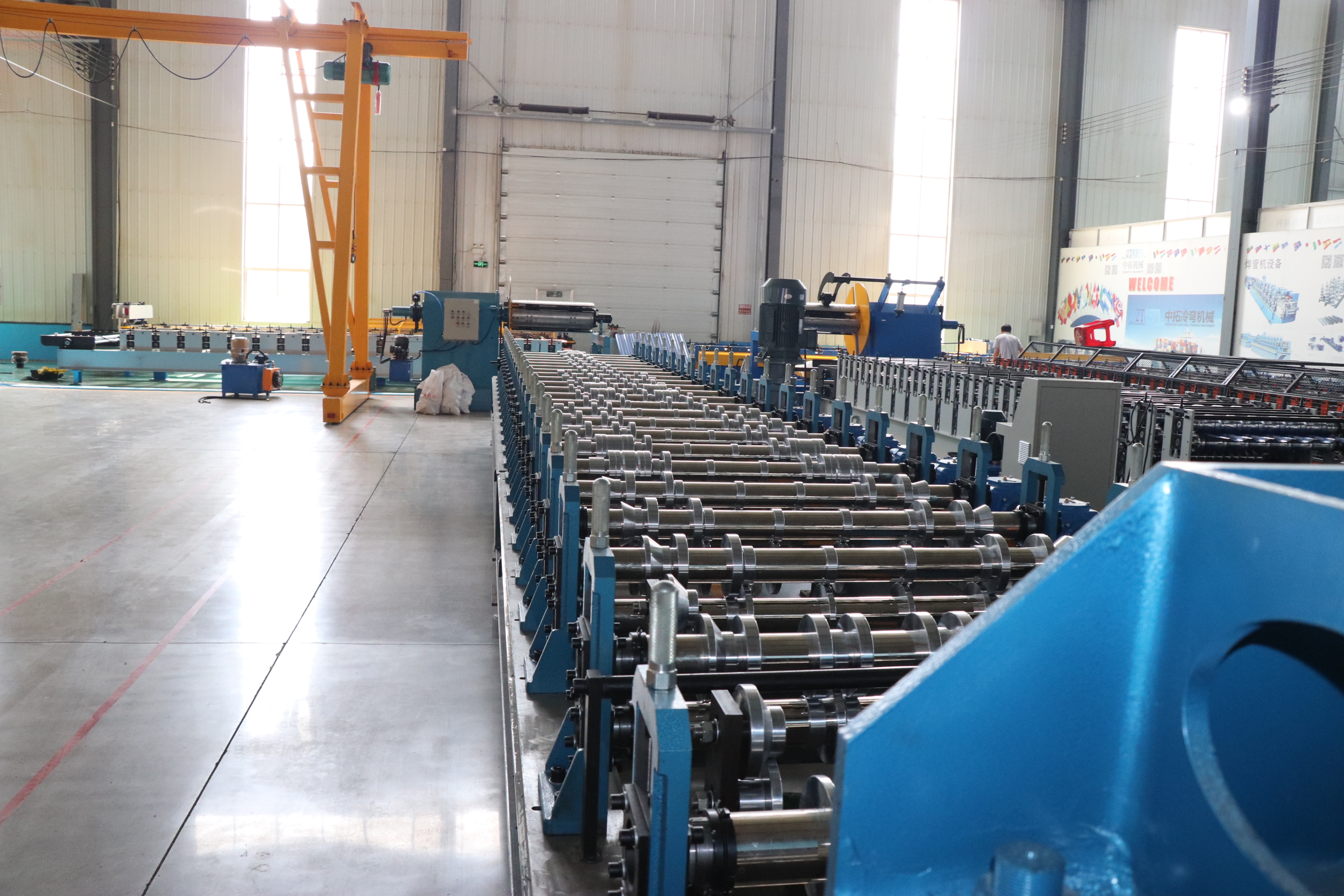

Customized High Speed metal roof making machine
Zhongtuo customized metal roof making machine, the layout of the machine supports customization, the production speed can be adjusted, and the machine supports remote control for precise after-sales service! The quality of the machine is reliable, with ISO, CE, CSA, KCs, SABER, and other quality certificates. It is worth your choice!

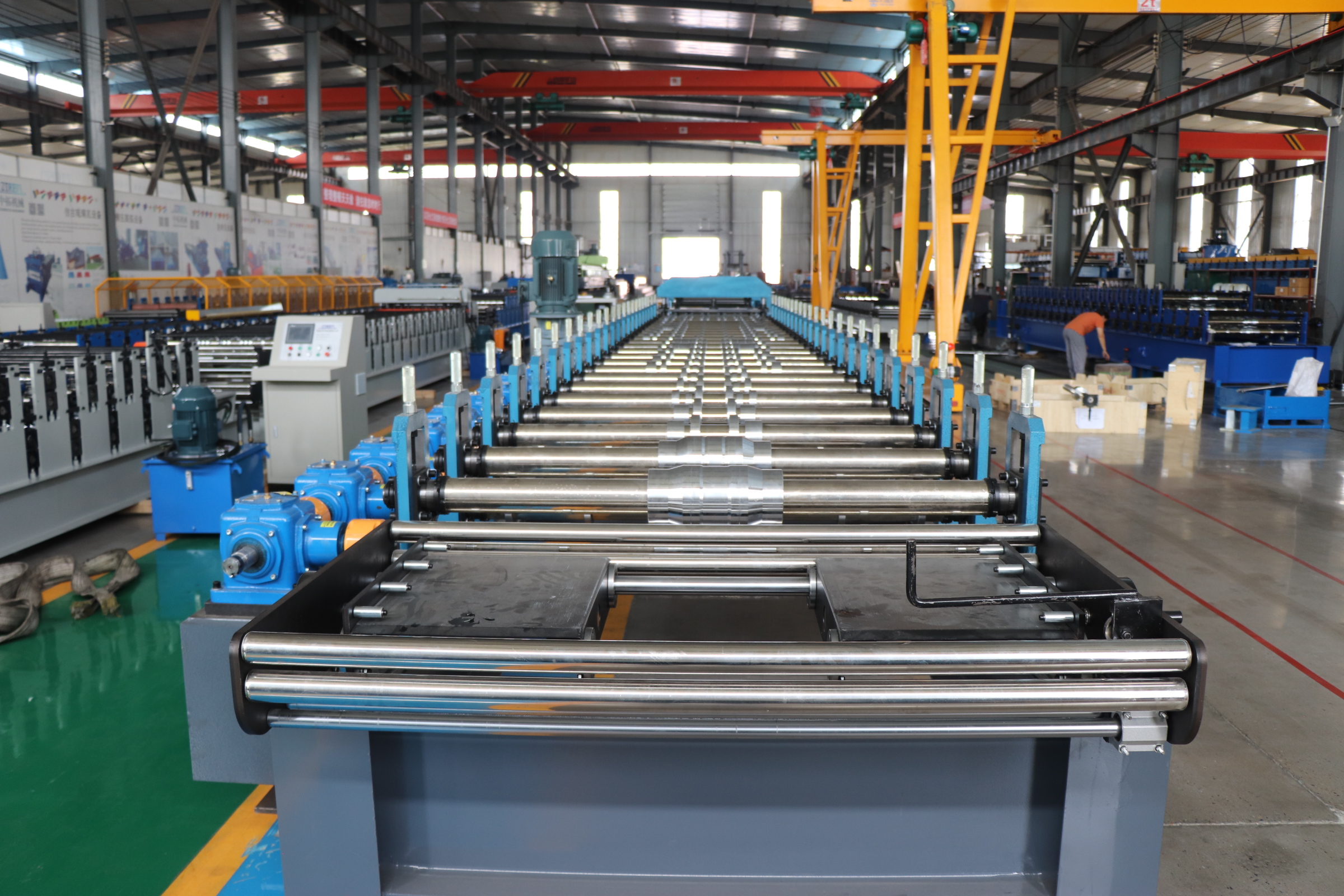

For the forming part of the machine, our inlet is equipped with a manual broach, which can save material and facilitate cutting. of course, if you want to improve the working efficiency, hydraulic per-cutting and electric shear are also very popular. Our large frame increased diagonal support to ensure the stability of the large frame. We have a whole molding and split molding, two categories, according to the customer's version of the wave height, width to set the machine molding method!
Main roll forming machine | |
Machine frame | Cast iron archway ,high precision and better stability |
Material of rollers | High grade 45# forged steel |
Chromed treatment (Chrome thickness:0.05 mm), make the rollers surface more smoothly, improve the hardness and prevent abrasion, anti corrosion increase of service life | |

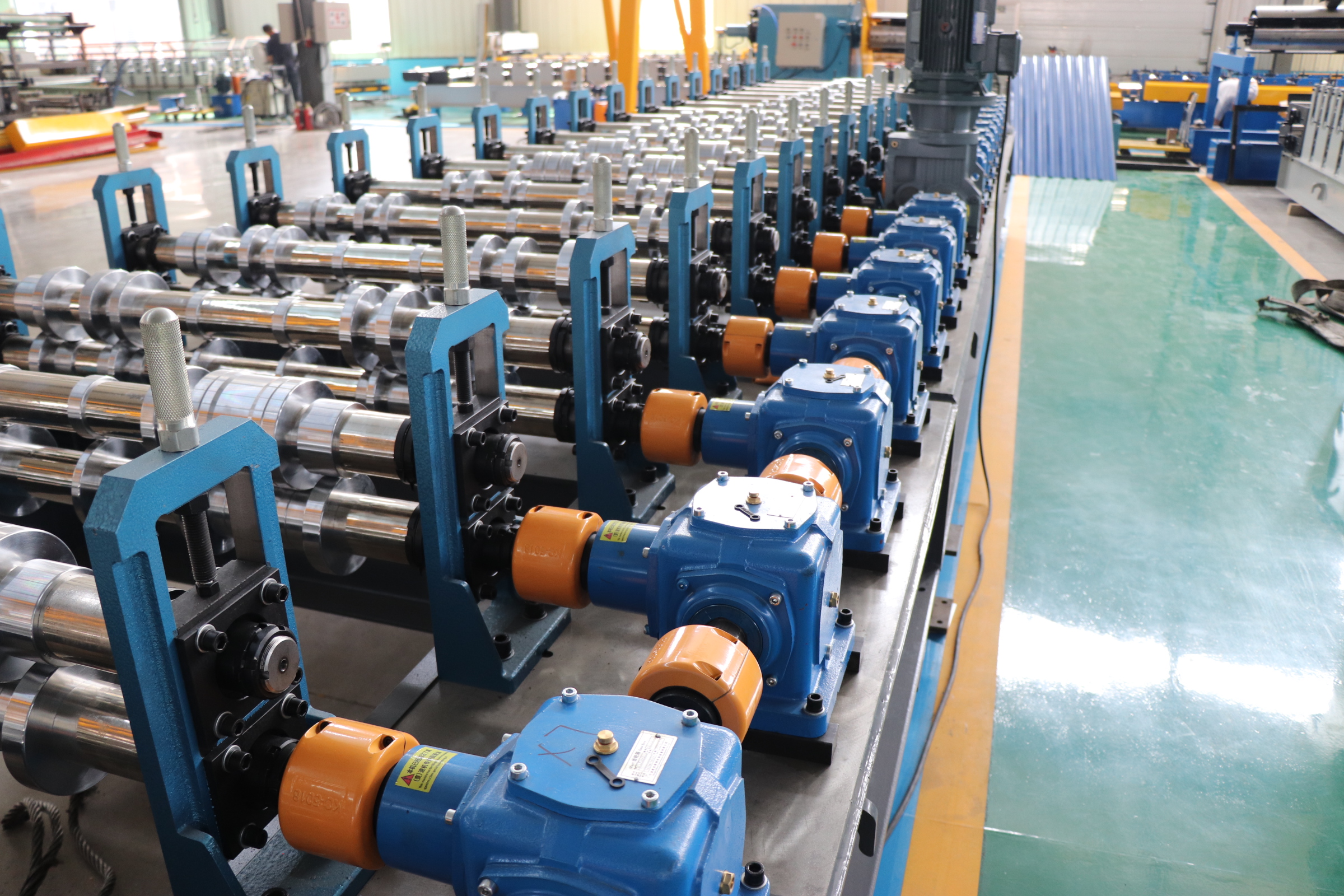

Forming stations | Roller stations :28 rows |
Rolling type: separate rolling design concept, it can release internal stress from the sheets, then the sheet will be in good shape and high precision. | |
Diameter of shafts | Φ80mm solid |
Material of shafts | High grade 45#,with heat treatment |
Forming speed | 25 m/min |
voltage | 480V/60HZ/3P (as requested) |
Transmission way | By Double chains |
Main motor | 11 KW |

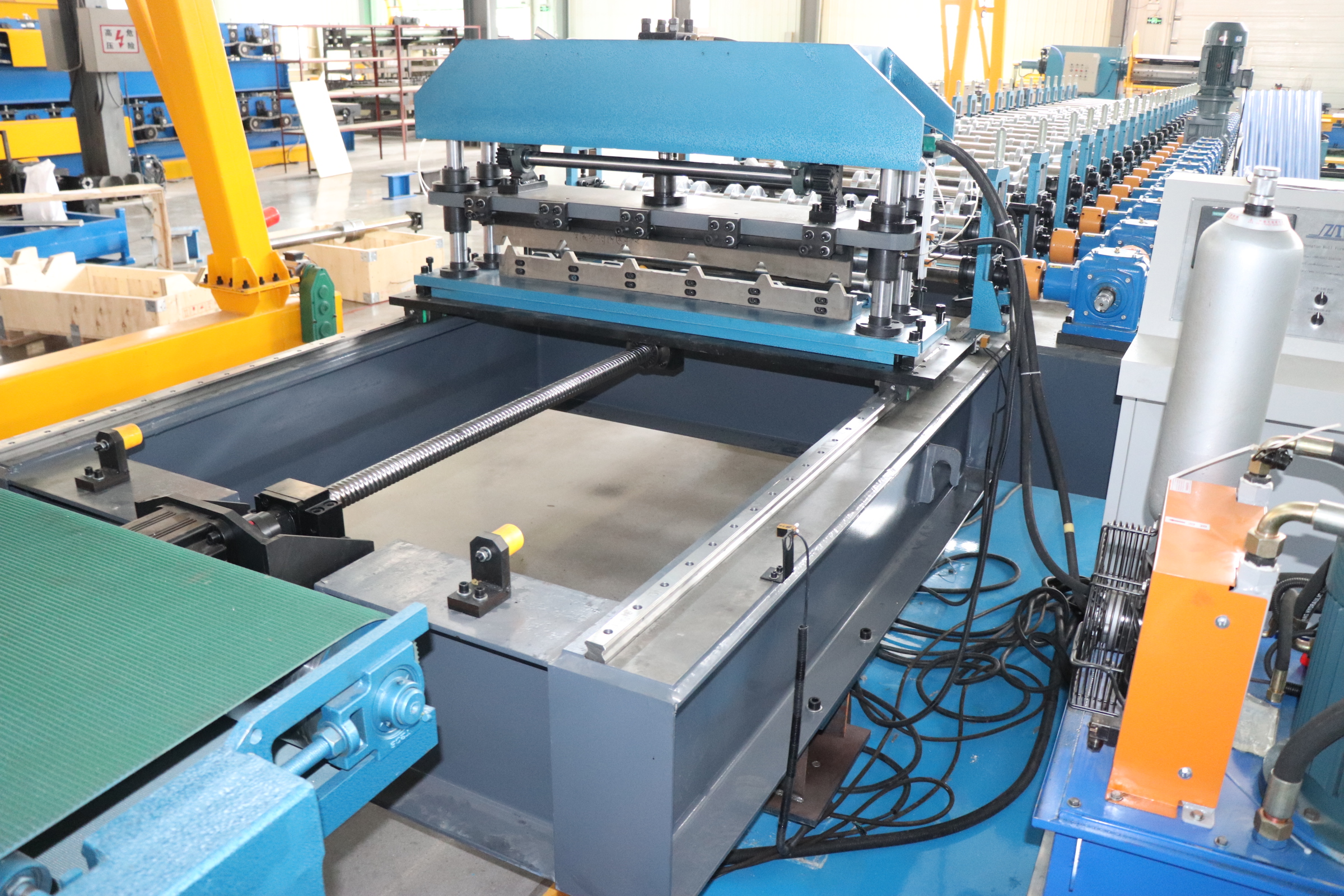

Cutting blade material | Gcr12 quenched treatment |
Cutting type | Stop cutting |
Driving method | By Middle Plate Structure |
Machine advantages:
4. The total wiring using aviation plug, moisture-proof, durable, and more beautiful.
