High-precision Glazed Roofing Sheet Making Machine
Here's a reference video of our machine producing:
Glazed roofing sheet roll forming machine introduction:
Zhongtuo's glazed roof tile machine is a kind of cold bending molding machine specially used for producing antique glazed color steel tiles, which is characterized by combining the classical aesthetics of traditional glazed tiles with the advanced nature of modern color steel technology.Mainly by roll forming, press glazed tile section, finished product shear, our glazed tile machine to test the flatness of the panels, we measure the diagonal of the panels to ensure dimensional accuracy, and we also rigorously check the lacquer integrity of the finished panels to avoid scratches. The finished products are widely used in villas, church roofs, scenic spots, garden buildings, and hotels, vintage glazed tiles make the architectural style unique; modern architecture contains traditional beauty!
| Main Parameter | |
| Machine frame | 400mm H beam structure, with 18mm welded steel middle support plate. |
| Material of rollers | High grade 45# forged steel Chromed treatment (Chrome thickness:0.05 mm), make the rollers surface more smoothly, improve the hardness and prevent abrasion, anti corrosion increase of service life |
Forming stations | Upper layer 18 rows Rolling type: separate rolling design concept, it can release internal stress from the sheets, then the sheet will be in good shape and high precision. |
Forming speed | 4m/min |
Cutting blade material | Gcr12 quenched treatment |
Driving method | By pillar type Cylinder |
The glazed tiles' advantages

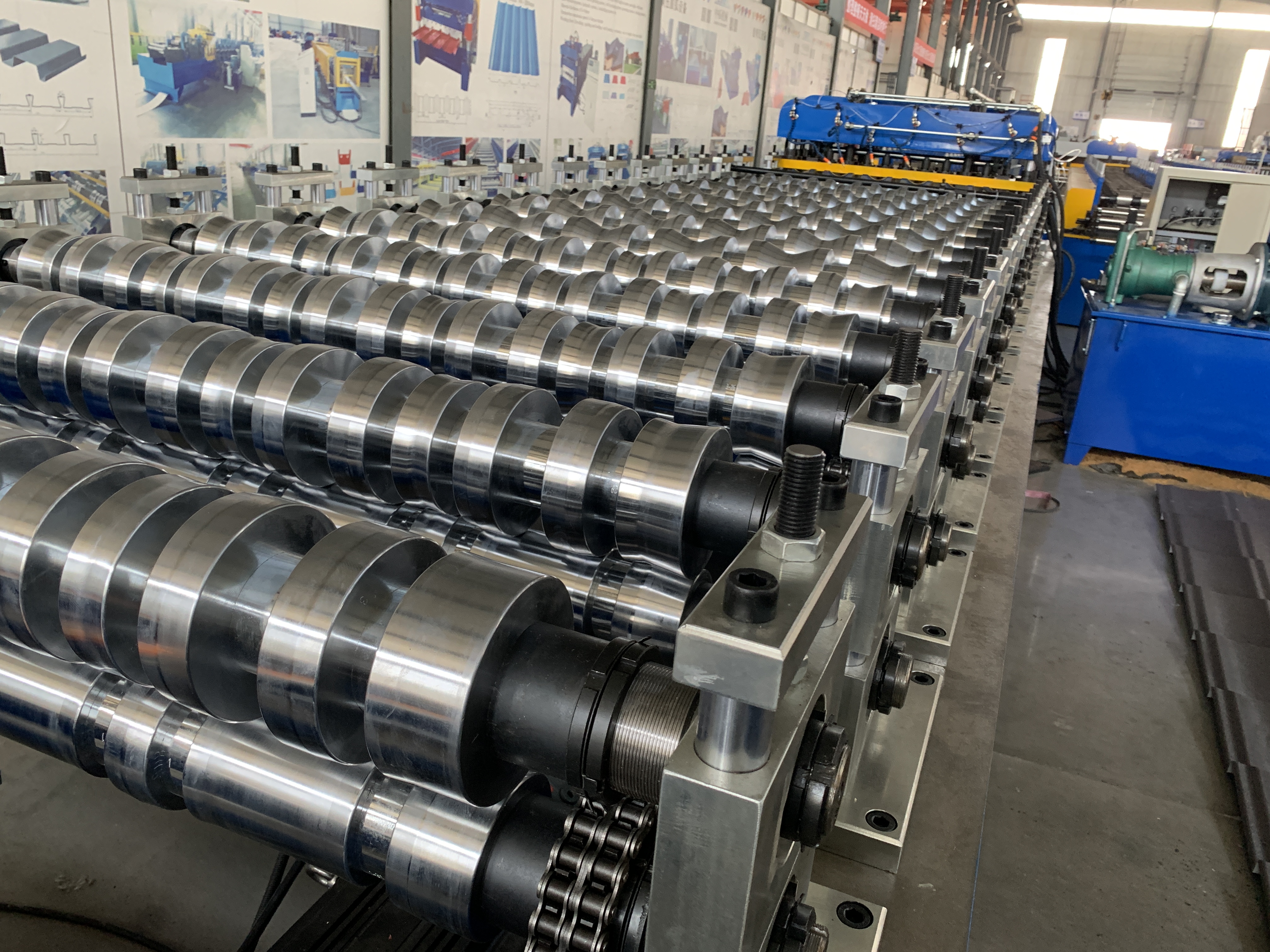

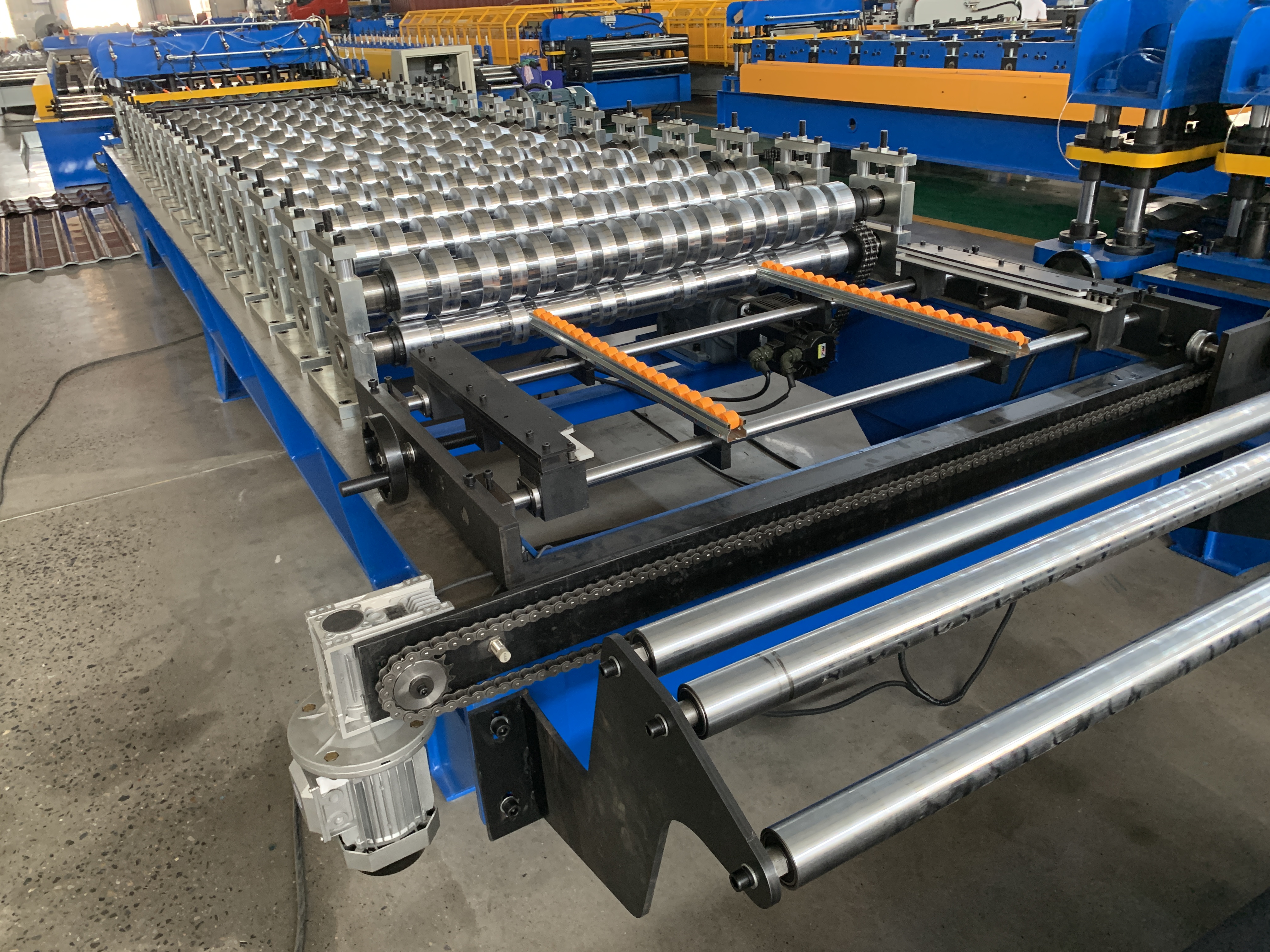

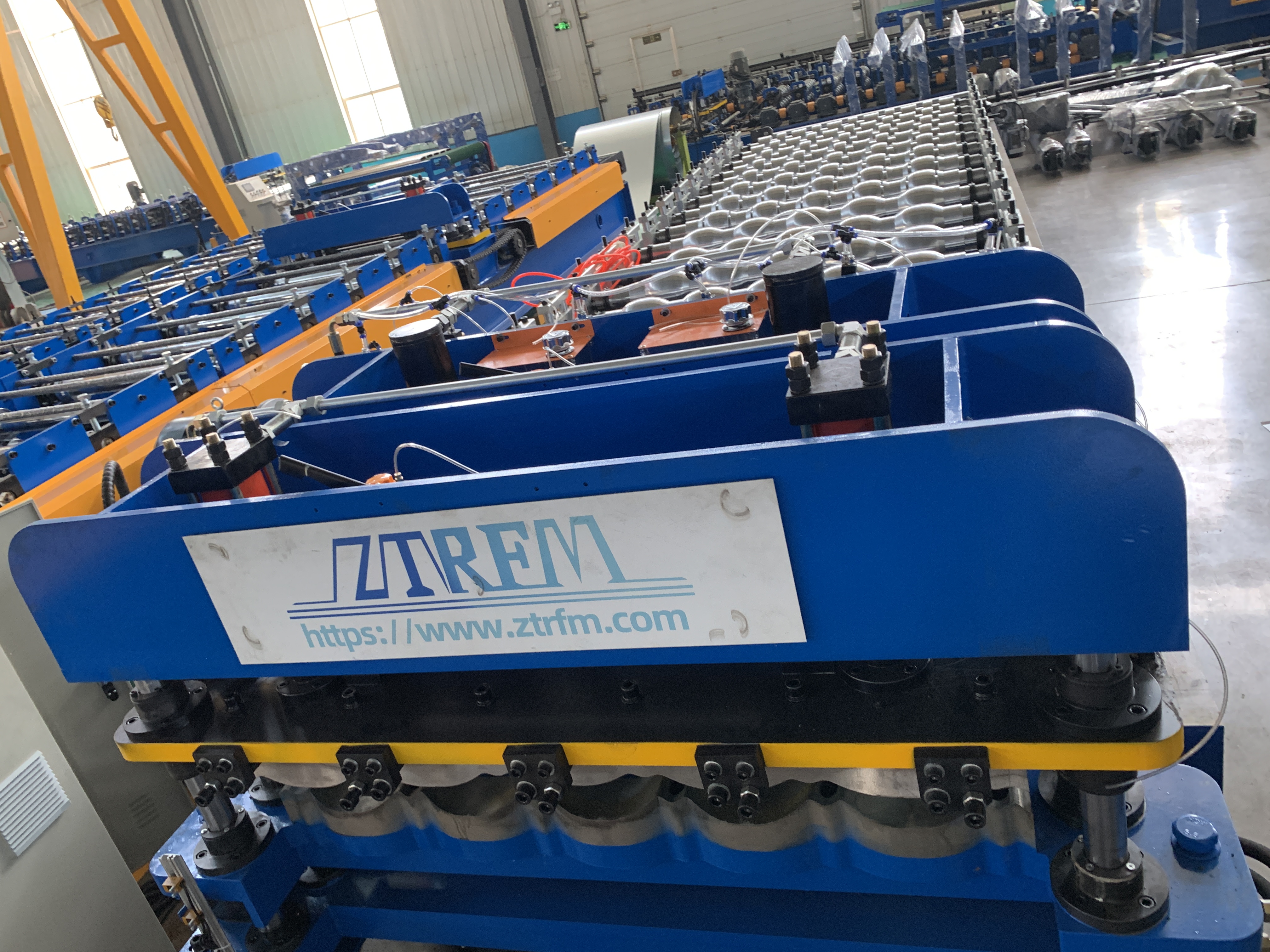

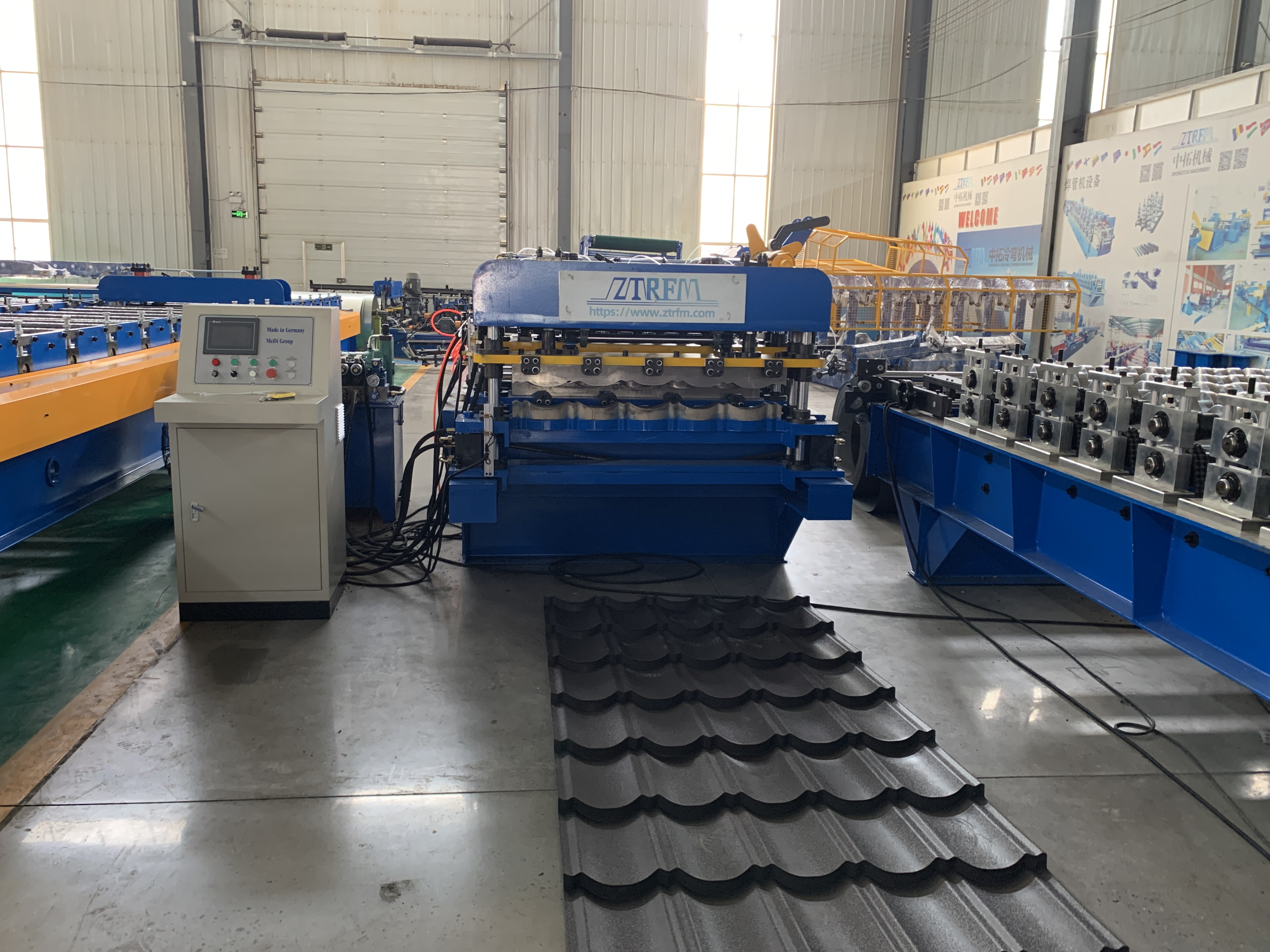

Machine Details:
Why choose Zhongtuo Factory?
Cangzhou Zhongtuo cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design,development, and production of cold roll forming machines, materials of machines. The company cooperates with several production factories and associated enterprises. It is located in the northwest of Cangzhou, with a long history, and it is the hometown of martial arts. All products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia, and so on.
Good After-sales Service
Choosing an imported cooperative factory, in addition to the importance of the quality of the machine, after-sales service is also essential. Zhongtuo has the most perfect after-sales service system, 24h online video service, to solve the problem of time difference between different countries, to save customers' time; overseas engineers personally go to the factory to help with debugging, installation, and training staff. We are always at your service.
