Australia Popular Corrugated Roof Sheet Roll Forming Machine
Australia Building market introduce:
Corrugated roofing sheet roll forming machine are highly popular for the Australian construction industry, which is in a transitional period. Moreover, for traditional wooden buildings and brick wall buildings, the Australian government policies, technological upgrades and talent introduction have provided new growth momentum for the industry fully automated corrugated roofing sheet roll forming machine can help Australia develop modern steel structure buildings. Everyone is also continuously paying attention to the improvement of approval efficiency, the effectiveness of labor force training and cost control measures. Today we are going to introduce corrugated roofing sheet roll forming machine exported to Australia.
The detailed parameters
Corrugated roofing sheet roll forming machine are as follows:
Corrugated roofing sheet roll forming machine | |
Machine frame | Midium plate structure |
Material of rollers
| High grade 45# forged steel |
Chromed treatment (Chrome thickness:0.05 mm), make the rollers surface more smoothly, improve the hardness and prevent abrasion, anti corrosion increase of service life | |
Forming stations
| Roller stations :16 rows |
Rolling type: separate rolling design concept, it can release internal stress from the sheets, then the sheet will be in good shape and high precision. | |
Diameter of shafts | Φ80mm solid |
Material of shafts | High grade 45#,with heat treatment |
Forming speed | 25 m/min |
voltage | 380V/60HZ/3P (as requested) |
Transmission way | By Double chains |
Main motor | 7.5 KW |
Cutting blade material | Gcr12 quenched treatment |
Cutting type | Flying cutting |
Driving method | By pillar type Cylinder |
Machine different part introduce:
Automatic hydraulic decoiler with loading car
A.Hydraulic decoiler is motor drive the coils running and can do forward and reverse running as well as do the decoiling with tension.
The car can move levelly and vertically, which is convenient for putting the steel coils into the decoiler.
B. It is driven vertically by hydraulic cylinder with 4 guide pillars
C. The level movement is driven by motor
D. Capacity:5 T
E. Driving motor power: 7.5 kw
Function: It is used to lift up and down, move forward and back to make it easy to load the coils on decoiler. Hydraulic controls lifting, motor drives moving. The car is controlled on the auxiliary control panel. Its moving speed is 40 m/min. When the coils on decoiler, the car will return back to the start position. It can also carry back the unfinished coils from decoiler.

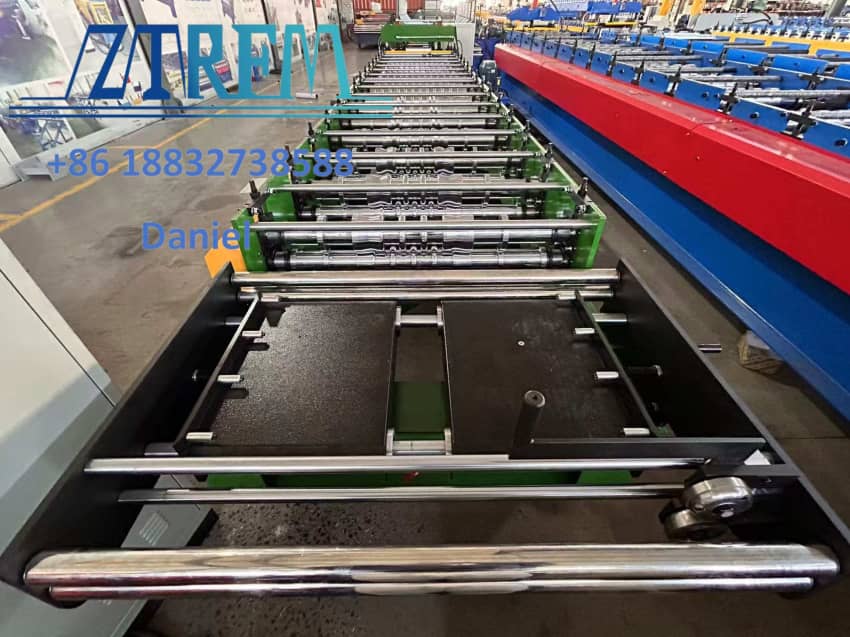

Main corrugated roofing sheet roll forming machine
Our corrugated roofing sheet roll forming machine is welded with 400H-Beam Steel and diagonal braces are added. This better ensures that the machine is less likely to twist or deform during transportation, guarantees the accuracy of the machine, and also ensures the sturdiness of the machine! Our machine is designed with a 16-row forming structure in response to the pattern requirements of Australian customers, ensuring forming accuracy and effect. Our rollers and rollers adopt a combined design of keys and keyways. Compared with the traditional direct wrapping installation method, keys and keyways can more stably and precisely fix the position of the rollers We ensure the forming accuracy of the pattern, and our Australian friends are also very satisfied with our design！
Delta import brands PLC control system
The electrical control system of our corrugated roofing sheet roll forming machine adopts the imported Delta electrical control system. The counter of the machine uses the imported Omron brand from Japan, and the frequency converter uses the imported Schneider brand from France. These globally renowned brand components, on the one hand, ensure that the production of roof tiles by the machine is more stable and efficient, and on the other hand, it is more convenient for customers to purchase accessories for after-sales maintenance. There are many other factories that offer cheap machines and only use local Chinese parts. Although there may not be significant differences on the surface of the machines, if they break down, customers will have to stop working and wait for the Chinese supplier to send back the parts. The time cost wasted in this way is far greater than the cost of the parts! Moreover, all of our electronic control wiring adopts an integrated wiring design with aviation plugs, which effectively ADAPTS to humid environments and ensures a more secure connection. Additionally, our wiring is marked with professional digital numbers and comes with wiring diagrams, facilitating the operation of workers in our customers' factories
Hydraulic cutting system
Our shearing system also integrates the design ideas of the entire technical department team and has been continuously improved. The structure has been modified to a double guide column structure, and the hydraulic oil pipes have been upgraded from traditional rubber oil pipes to galvanized steel pipes, which are not only aesthetically pleasing but also more durable. Moreover, we have added an automatic oil injector, which is more convenient for machine automatic maintenance and ensures that the cutting surface of the tiles is smooth and free of burrs
Conclusion
The construction market in Australia is now expanding. Purchasing machines to produce and sell finished tiles is a very promising business opportunity with great potential. So, at Zhongtuo Machinery, we have 20 years of experience in machine research and development and 12 years of experience in machine export. I guarantee to provide you with a reliable and efficient machine with comprehensive after-sales service guarantees, ensuring your business development is smooth and stable. Earn more theories, stay sincere, and trust Daniel
