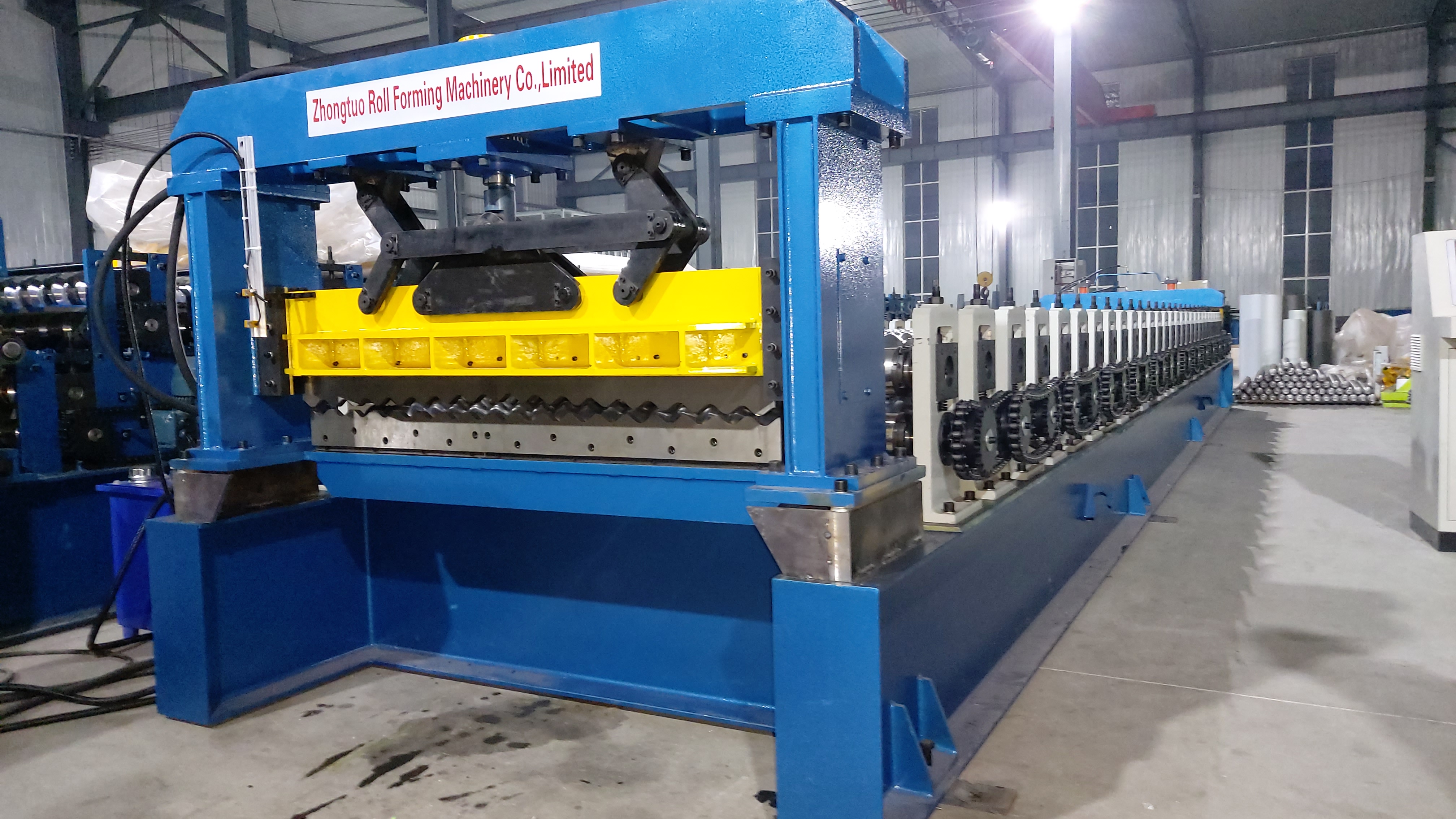

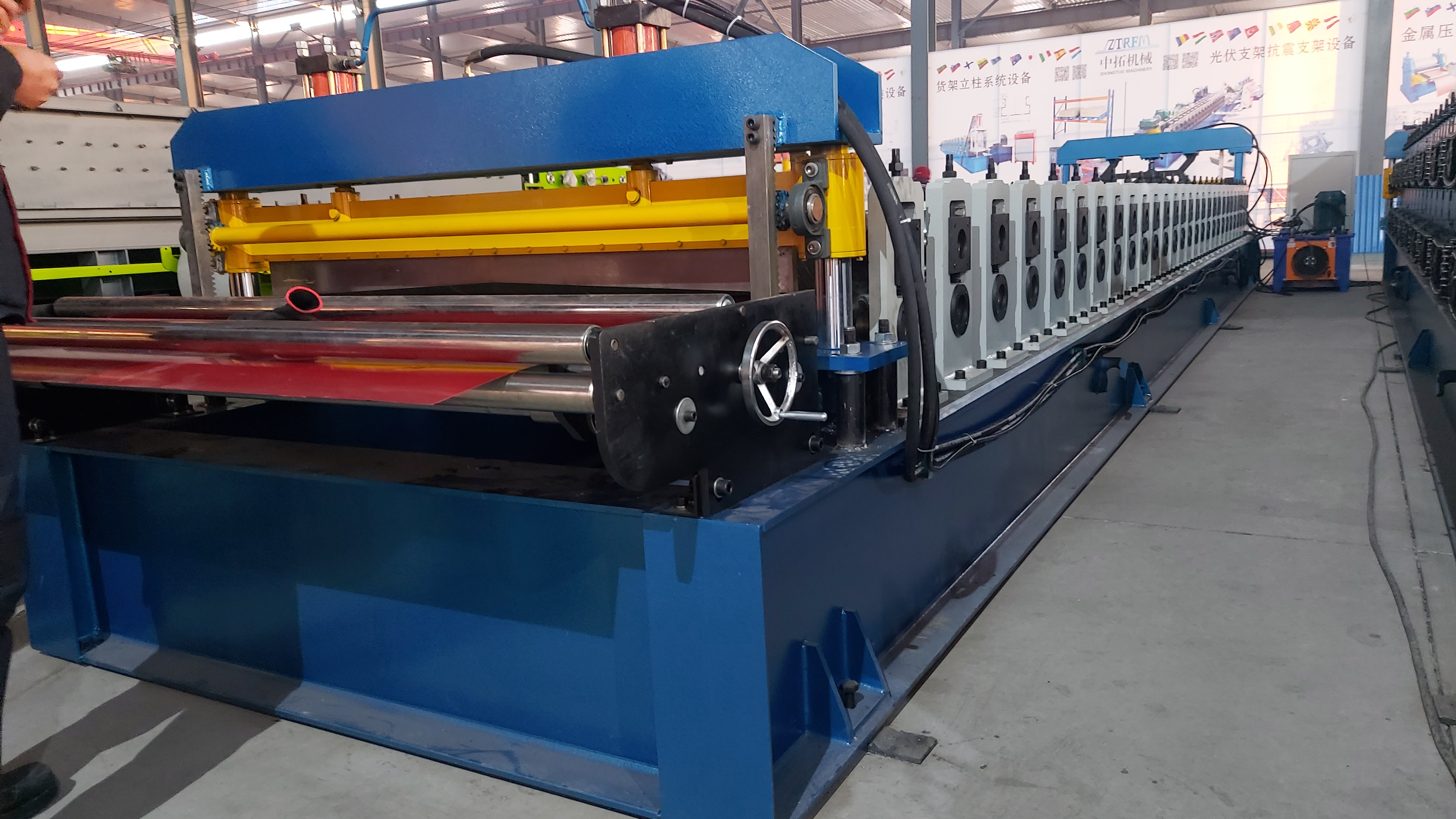

Anti aging corrugated roof sheeting roll forming machine | ||
1.Formed Material | PPGI,GI,AI,composite material | Thickness（customized） Width（customized） |
2.Decoiler | Hydraulic automatic decoiler | Ordinary decoiler(will give you as free） |
3.Main body | Roller station | 10-20 rows(As your requirement) |
Diameter of shaft | 70mm solid shaft | |
Material of rollers | 45# steel, hard chrome plated on the surface | |
Machine body frame | 350 H steel | |
Drive chain | 1.2inch(As your requirement) | |
Dimension(L*W*H) | 8500*1400*1300（customize） | |
Weight | 4-6T | |
4.Cutter | Automatic | cr12mov material, no scratches, no deformation |
5.Power | Motor Power | 5.5KW |
Hydraulic system power | 7.5KW | |
6.Voltage | 380V 50Hz 3Phase | As your requirement |
7.Control system | Electric Box | Customized（famous brand） |
Language | English（Support multiple languages） | |
PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |
8.Forming Speed | 12-35m/min | The speed depends on the shape of the tile and the thickness of the material. |
