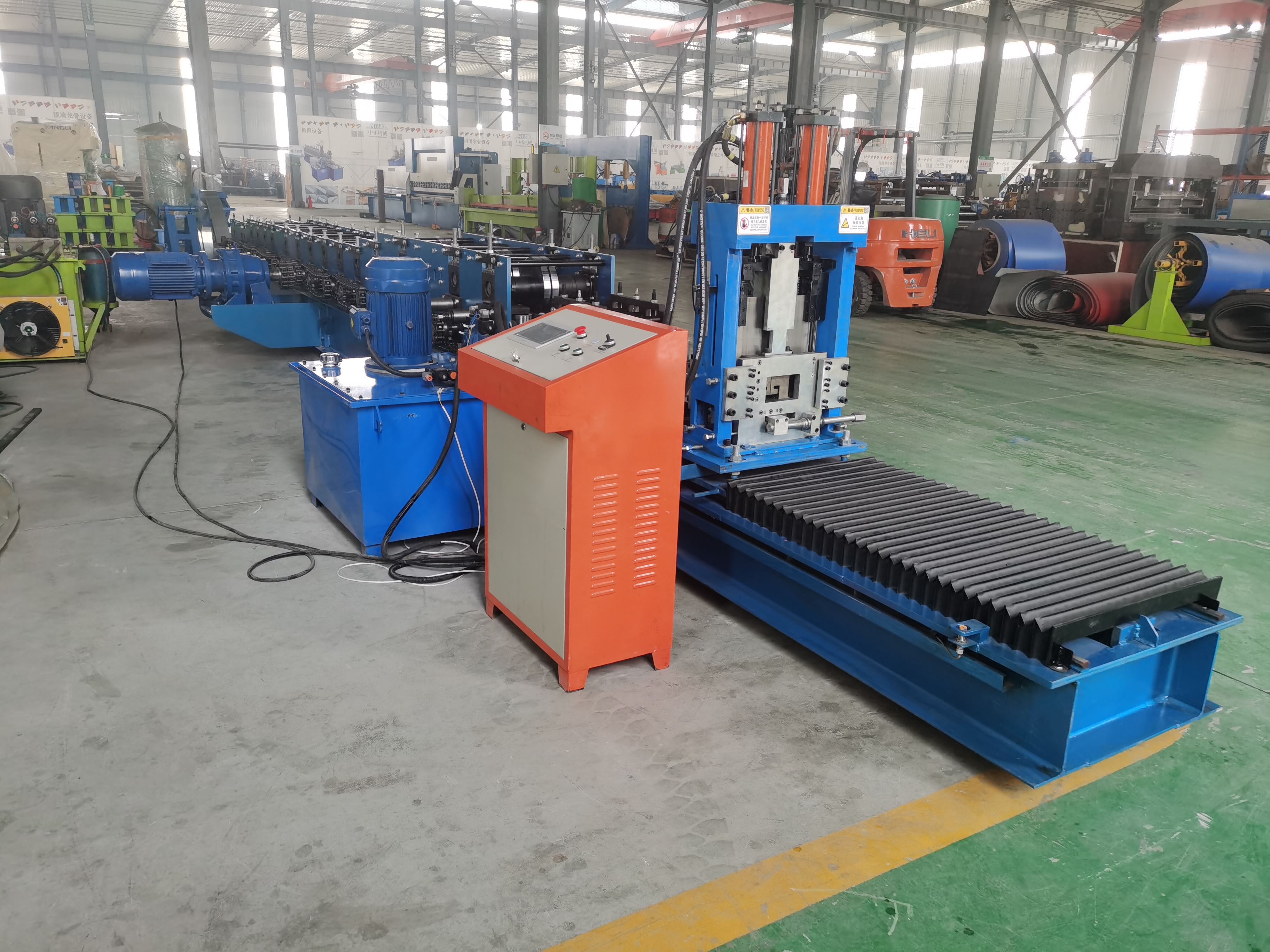

Fast change semi automatic metal C purlin channel roll formed machine
NO.4 ROAD, ECONOMIC DEVELOP ZONE, BOTOU CONUTY, CANGZHOU CITY, CHINA
Fast change semi automatic metal C purlin channel roll formed machine

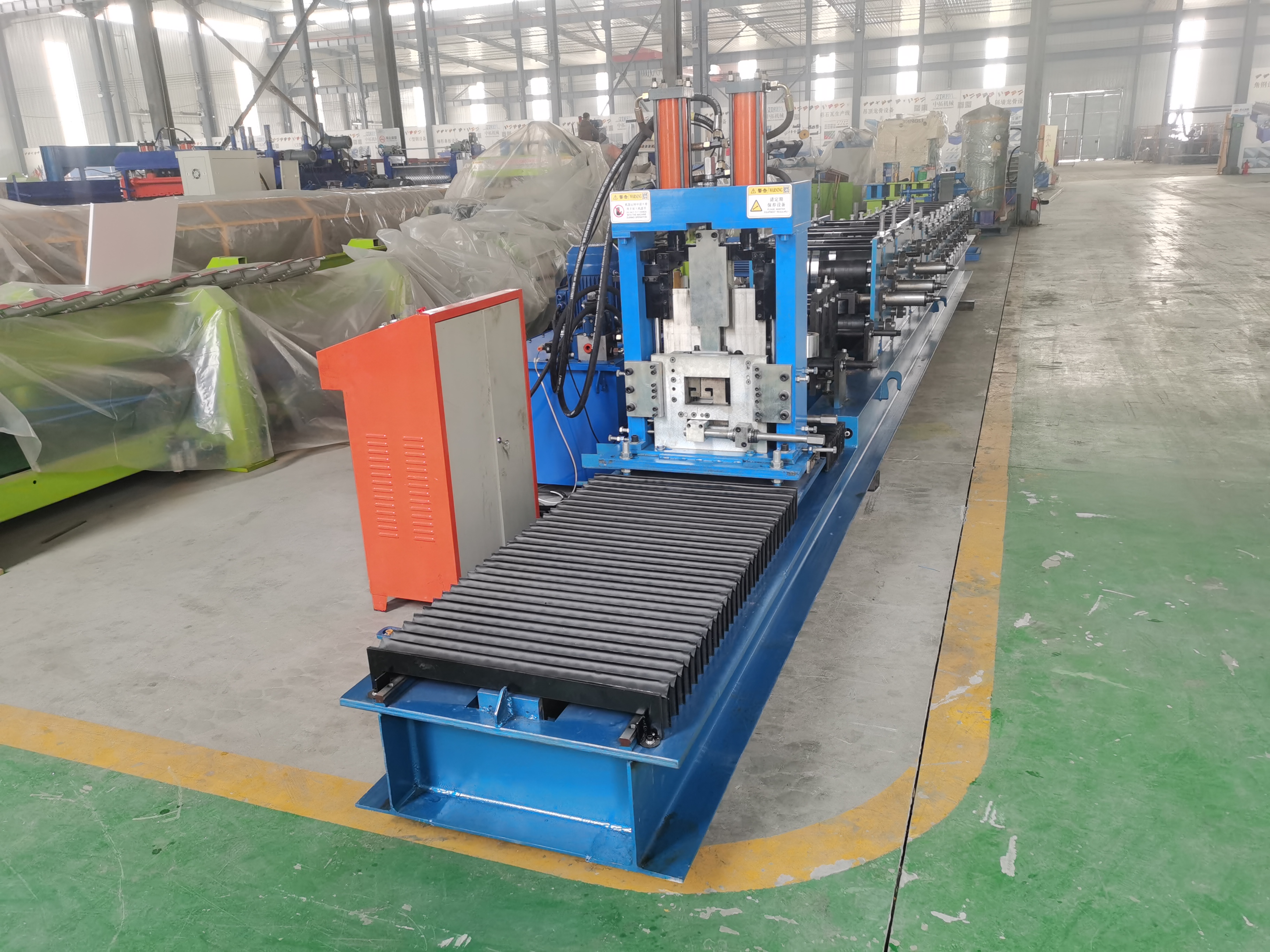

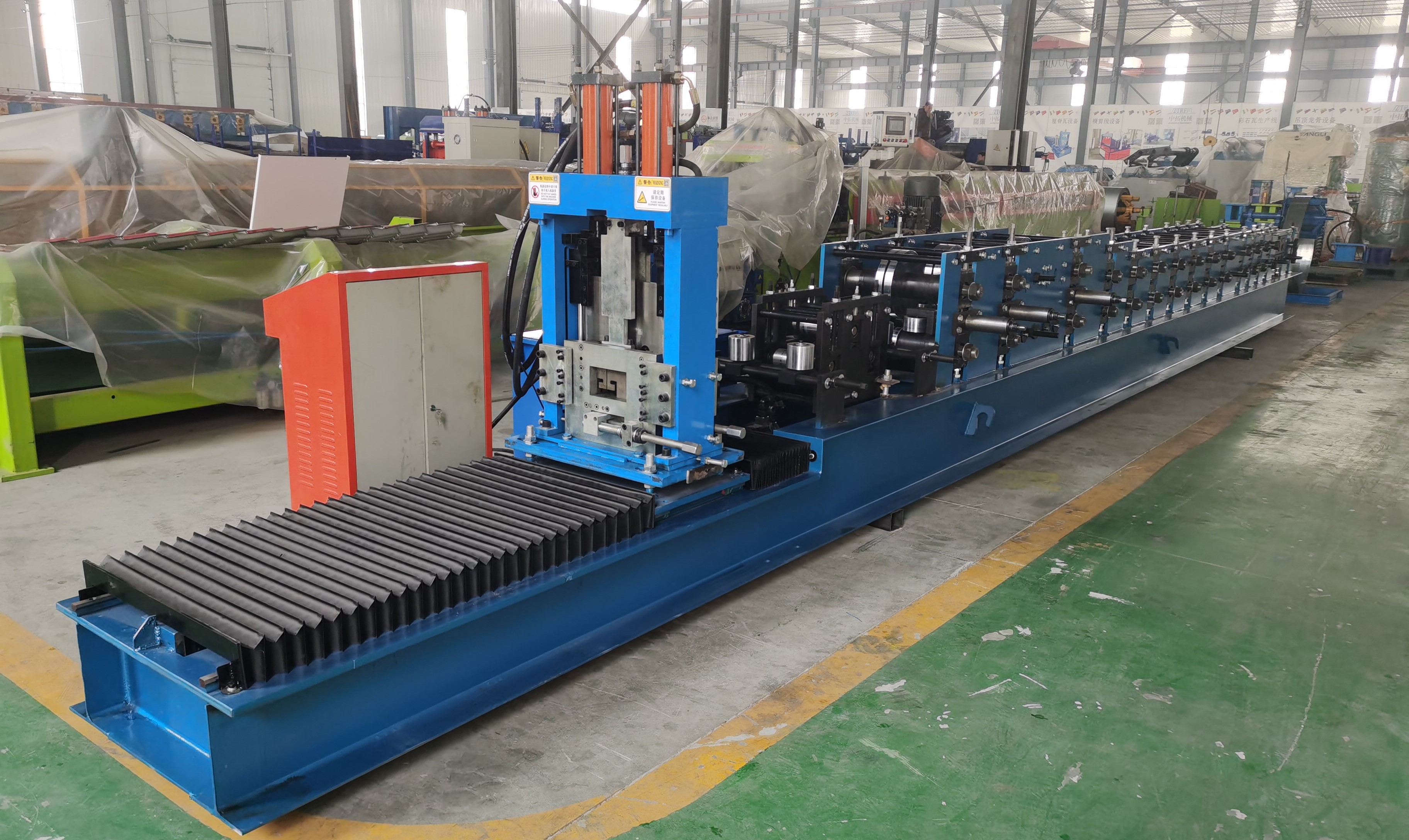

The C purlin channel is semi-automatic type, one machine can produce multiful C purlin dimensions in a certain range.
The dimensions can be change by electric buttons.

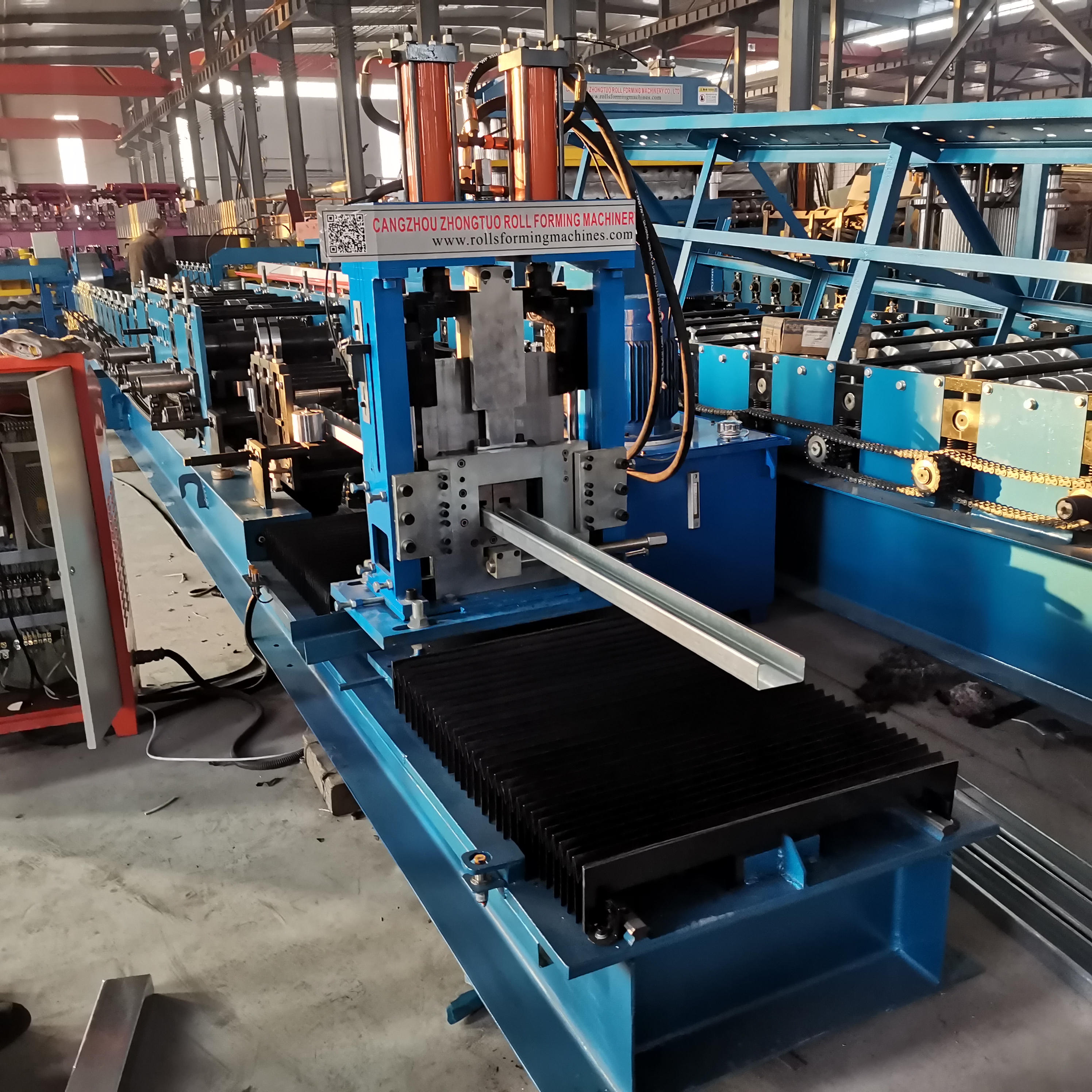

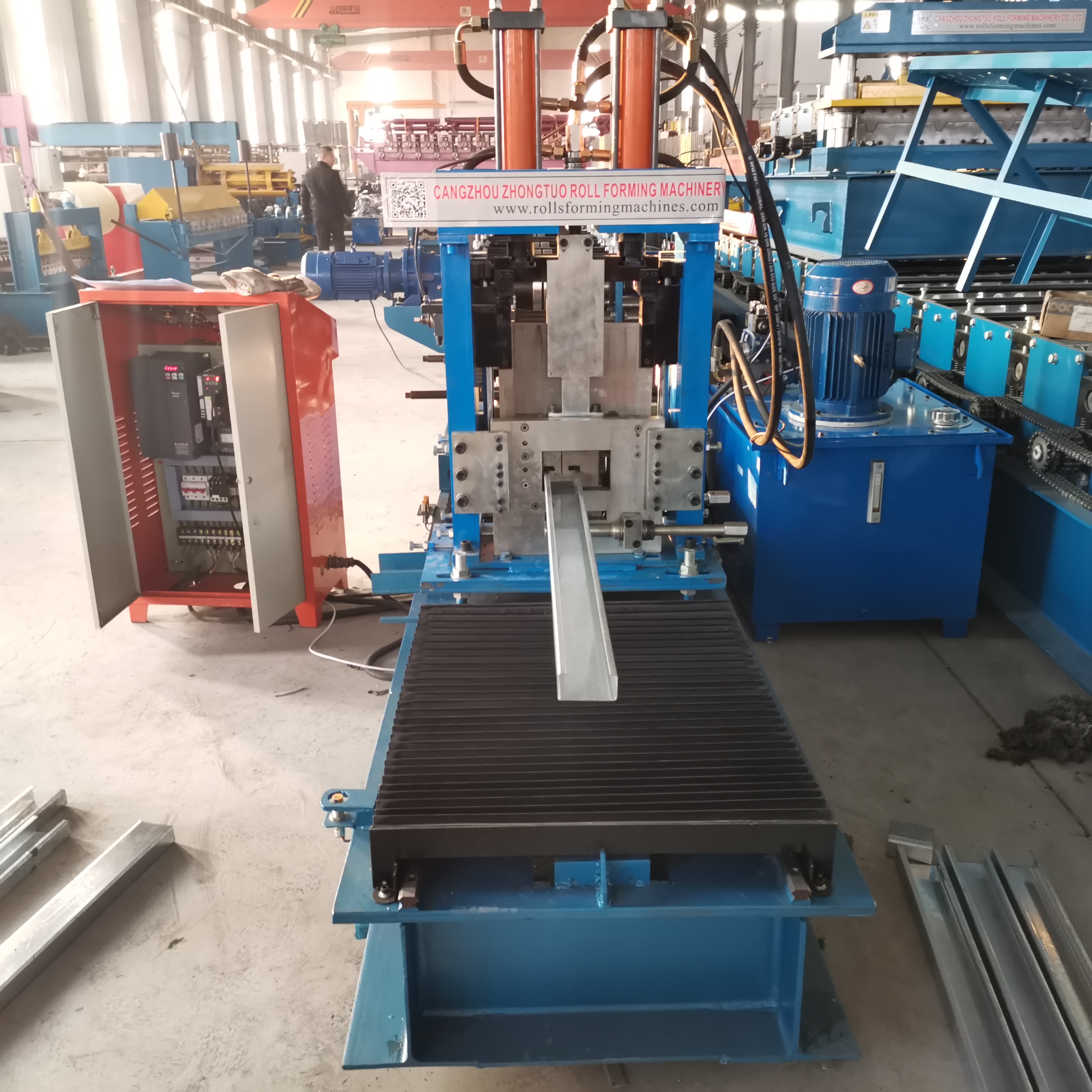

About cutting, our C channel roll formed machine use hydraulic tracking cutting. Speed max can reach 15 m/min.
And the cutter is no limited type, that means no need change cutter and cutting all C purlin dimensions.
Product Description

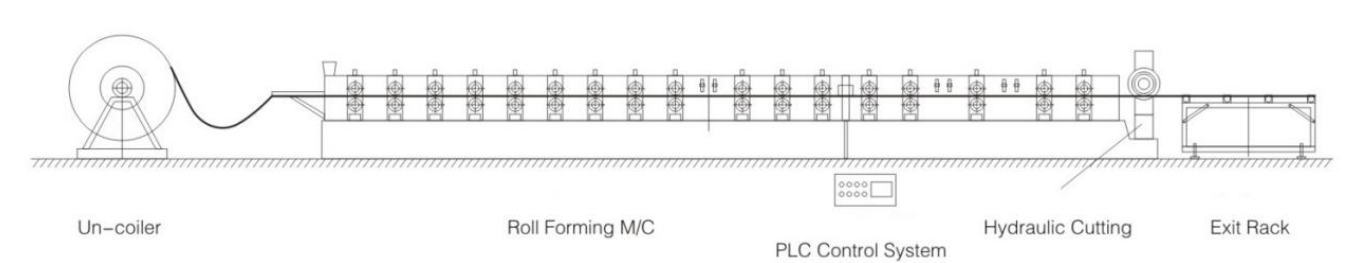

Work flow chart of the C purlin roll formed machine:
Uncoiling---Main roll forming machine---Hydraulic tracking cutting---Runout table
Detailed specifications:
| Configurations | Manual decoiler, guiding platform, main roll forming machine, cutting device, hydrualic oil pump station, PLC control system, runout table | |
| Material | Raw material | Galvanzied steel |
| Thickness | 1.8-2 mm | |
| Manual decoiler | Inner diameter: 450-550 mm | Expand by manual |
| Outer diameter: Max 1500 mm | ||
| Max coil width: 500 mm | ||
| Capacity: 5 T | ||

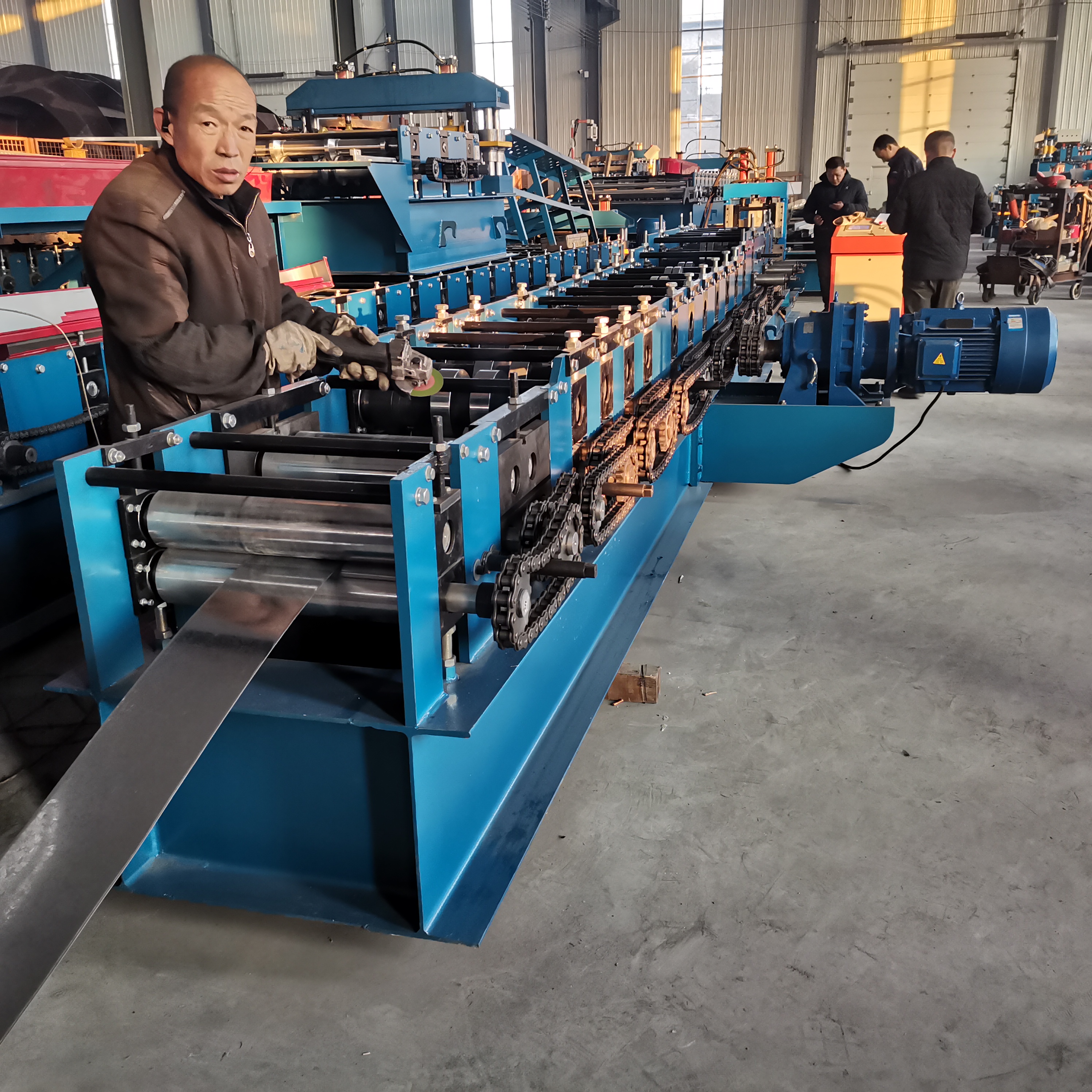

| Main roll forming machine | Forming steps | 16 forming steps |
| Shaft diameter | Φ 90 mm | |
| Design type | Middle plate welded | |
| Machine frame | 400#H steel welded | |
| Roller material | GCr 12 steel | |
| Shaft material | 40 CR | |
| Working speed | 15 m/min | |
| Transport | By chains | |
| Driving motor power | 18.5 KW | |
| Cutting type | Hydraulic cutting | |
| Cutting tolerance | ± 1 mm | |
| Cutter material | GCr 12 | |
| Cutter quantity | 1 set | |
| Working pressure | 20 MPA | |
| Hydraulic device | Hydraulic oil | 46# hydraulic oil |
| Hydraulic power | 5.5 KW | |
| Cutting length | As you required | |
| No distorting or wasting. High level safty factor | ||
| PLC control system | Language | English/ Chinese or as your request |
| Function | Can control the speed, length and quantity | |
| Other informations | Weight | About 7.2 Tons |
| Dimensions | 7800*1600*1500 mm (L*W*H) | |
| Machine colour | As your request | |
| Voltage | 380V-3P-50HZ or as your request | |
